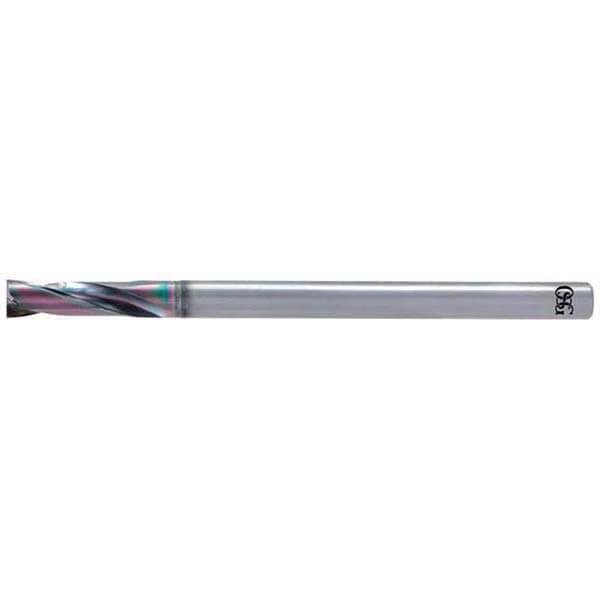

Screw Machine Length Drill Bit: 5/32" Dia, 0 deg Point
Item #: 14934913
Brand: OSG
Model #: 570515617
Product Specifications
| Drill Bit Size (Inch) | 5/32 |
| Drill Bit Size (mm) | 3.97 |
| Drill Bit Size (Decimal Inch) | 0.1562 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 180 |
| Coolant Through | No |
| Point Type | Flat Bottom |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Series | 5705 |
| Proprietary Coating/Finish | EgiAs |
| Flute By Diameter Ratio | 2xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
