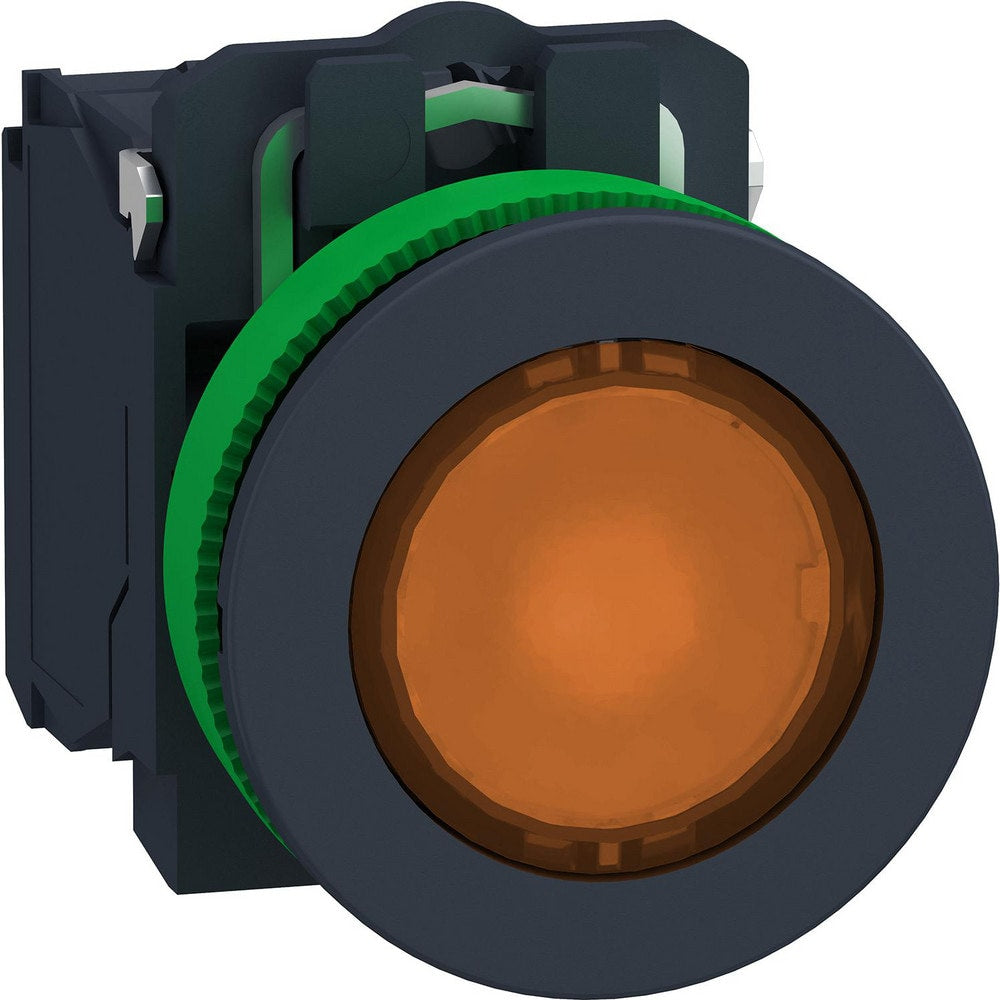

Pushbutton Switches; Mounting Hole Diameter (mm): 30.00; Switch Type: Push-Button Switches with Contact Blocks; Terminal Type: Screw Clamp; Amperage: 10; Voltage: 24V; Operator Illumination: Illuminated
Item #: 82866278
Brand: Schneider Electric
Model #: XB5FW35B5
Product Specifications
| Mounting Hole Diameter (mm) | 30.00 |
| Switch Type | Push-Button Switches with Contact Blocks |
| Terminal Type | Screw Clamp |
| Amperage | 10 |
| Voltage | 24V |
| Operator Illumination | Illuminated |
| Operation Type | Maintained (MA) |
| Switch Sequence | On-Off |
| Resistance Features | Dust-Resistant; Vibration-Resistant |
| Standards | IEC, UL, CCC, EAC, JIS |
| Push Button Type | Flush |
| Push Button Color | Orange |
| Push Button Shape | Round |
| Push Button Material | Plastic |
| Nema Rating | 13; 4X |
| Contact Configuration | NO; NC |
| Lamp Type | LED |
| UNSPSC Code | 39122221 |
