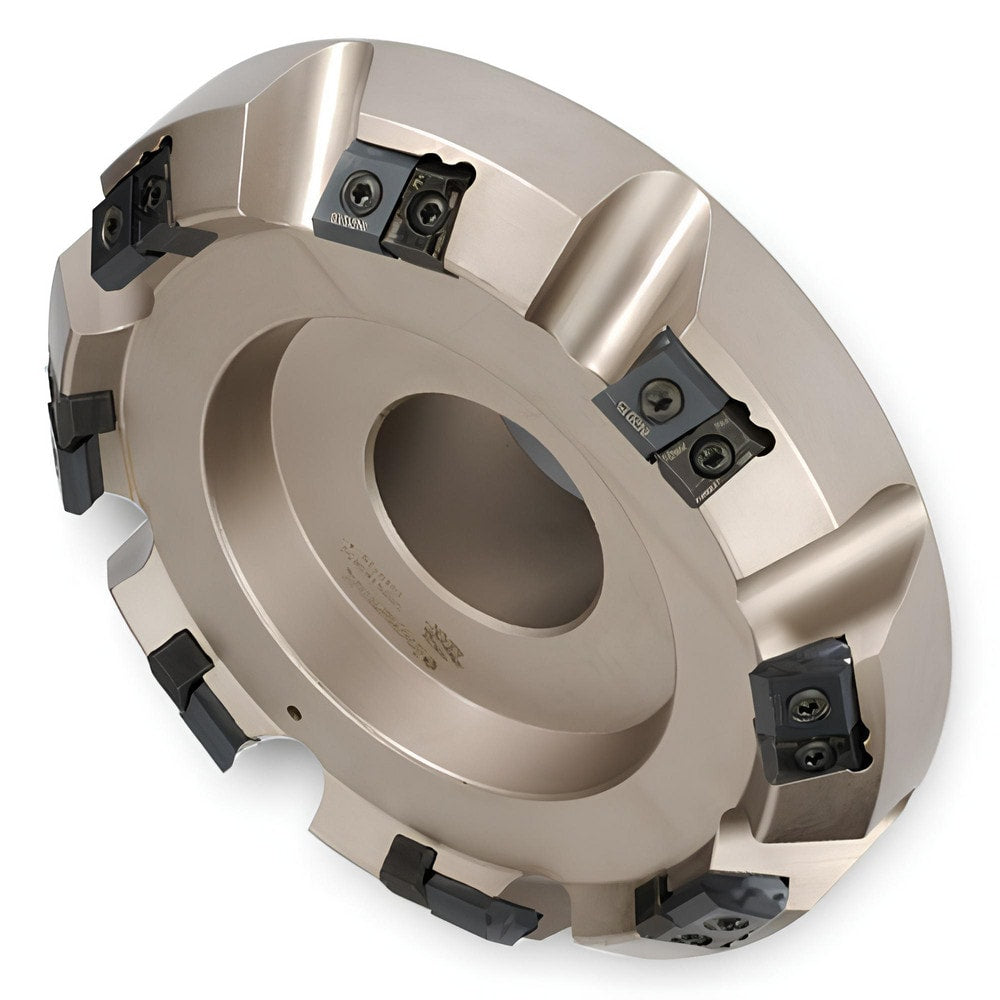

Brand: Ingersoll Cutting Tools / Part #: 3029250
Item #: 96720586
Brand: Ingersoll Cutting Tools
Model #: 3029250
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 10.0000 |
| Minimum Cutting Diameter (Inch) | 10 |
| Maximum Cutting Diameter (mm) | 271.78 |
| Maximum Cutting Diameter (Decimal Inch) | 10.7000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 434 |
| Cutter Style | SN2N |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | SN2N |
| Keyway Width (Decimal Inch) | 1.0000 |
| Keyway Width (Inch) | 1 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Maximum Body Diameter (Decimal Inch) | 11.0000 |
| Maximum Body Diameter (mm) | 279.40 |
| Pitch Type | Coarse |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | DPM434.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | SN2N-10A01 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | No |
| Number Of Flutes | 12 |
