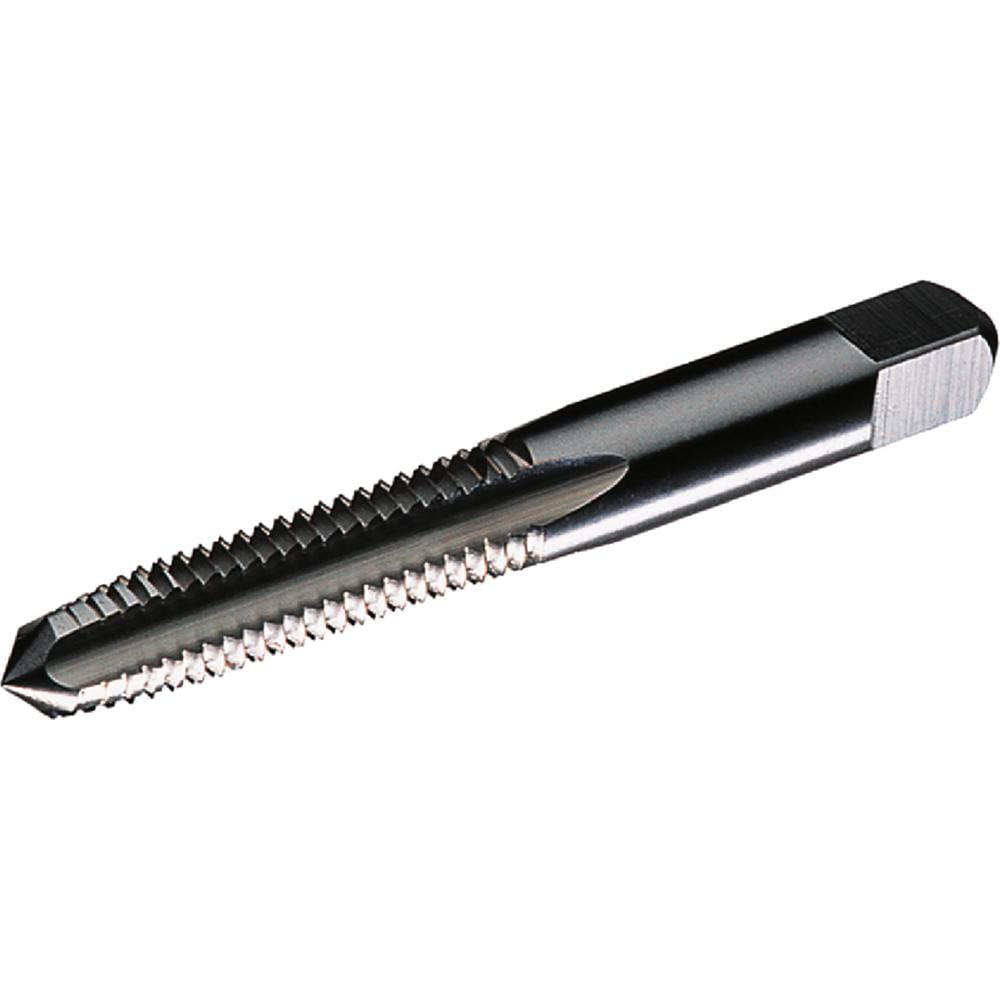

Brand: Widia / Part #: 2749094
Item #: 99824633
Brand: Widia
Model #: 2749094
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M24x3 |
| Thread Limit | D8 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 124.6200 |
| Thread Pitch (mm) | 3.00 |
| Thread Length (mm) | 56.36 |
| Thread Depth (mm) | 56.36 |
| Application | Metal |
| Shank Diameter (mm) | 19.3000 |
| Square Length (mm) | 19.05 |
| Series | 5353 |
| Shank Length (mm) | 68.260 |
| Shank Length (Decimal Inch) | 2.6874 |
