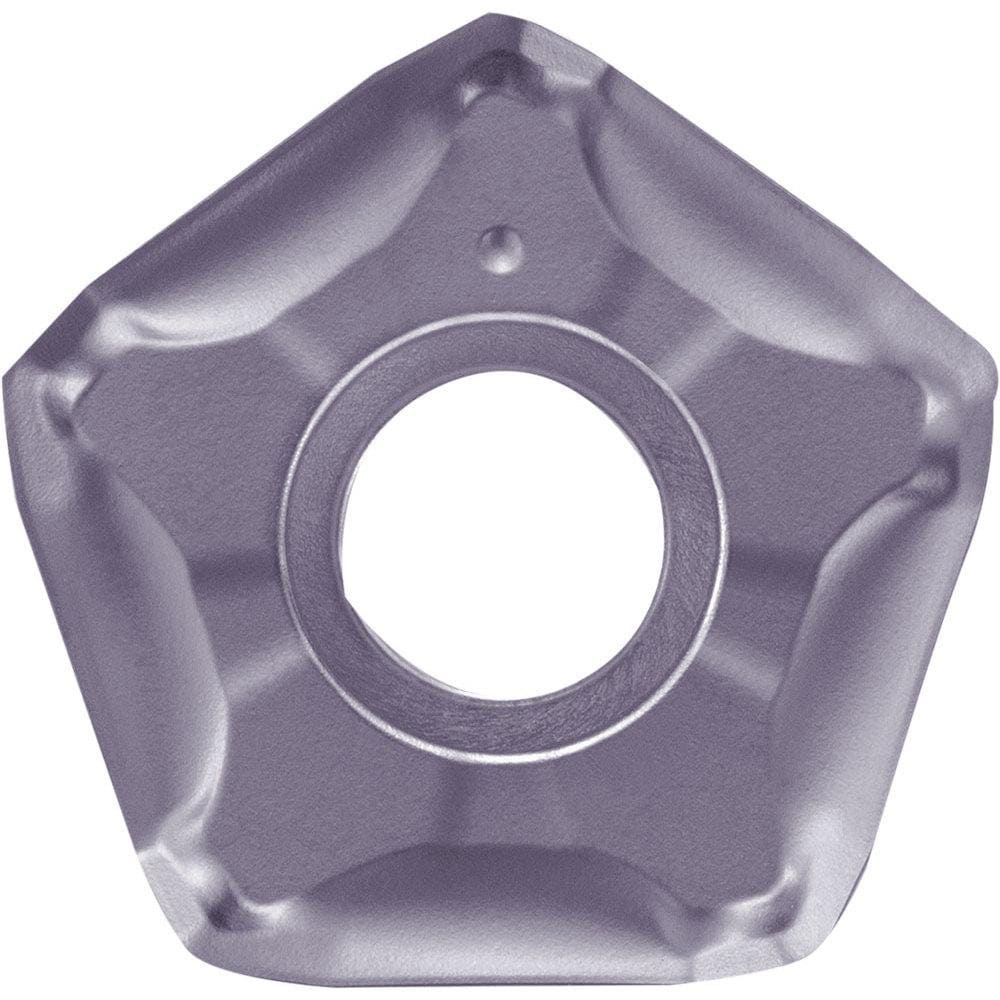

Milling Insert: PNMU0905XNER-GM PR1810, Carbide
Item #: 87707444
Brand: Kyocera
Model #: TLS00098
Product Specifications
| Insert Style | PNMU |
| Insert Size | 0905 |
| Insert Material | Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.5600 |
| Coating/Finish | MEGACOAT NANO EX |
| Thickness (Inch) | 7/32 |
| Insert Hand | Right Hand |
| Series | MFPN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.7000 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Rake | Negative |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | PNMU0905XNERGMPR1810 |
| Iso Code | PNMU0905XNER-GM |
| Manufacturers Catalog Number | PNMU0905XNERGMPR1810 |
| Chip Breaker | XNER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 14.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5748 |
| Country of Origin | Japan |
