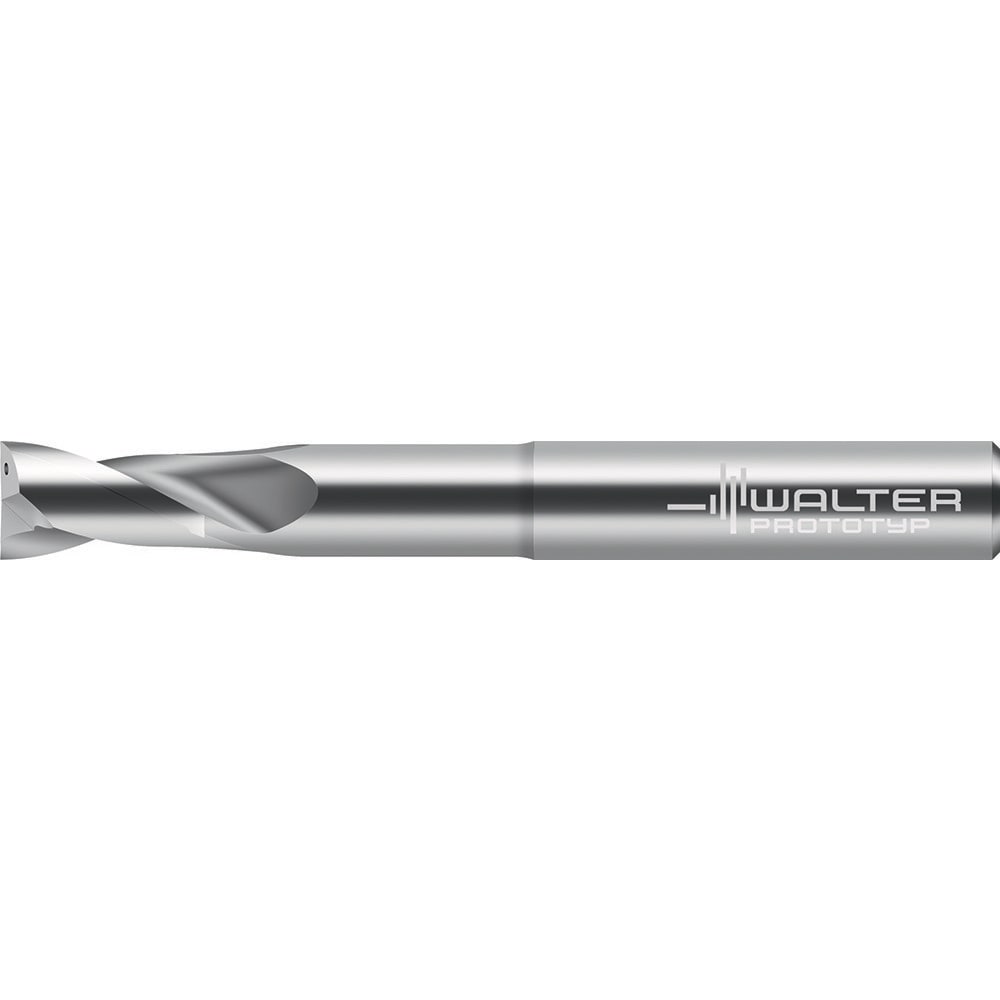

Square End Mill: 10.00 mm Dia, 48.0000 mm LOC, 2 Flute, Solid Carbide
Item #: 51382968
Brand: Walter-Prototyp
Model #: 8033850
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 48.0000 |
| Shank Diameter (mm) | 10.0000 |
| Overall Length (mm) | 90.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Coating/Finish | Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Whistle Notch |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (mm) | 9.500 |
| Reach Length (mm) | 48.00 |
| Shank Diameter Tolerance | h5 |
| Series | MD266 |
| UNSPSC Code | 27112803 |
