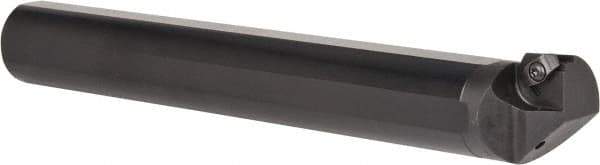

Kennametal - 2-3/8" Min Bore Diam, 16" OAL, 2" Shank Diam, A-NS Indexable Boring Bar - N. Insert, Clamp Holding Method
Item #: 48422455
Brand: Kennametal
Model #: 1094919
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-NS |
| Series | Top Notch |
| Minimum Bore Diameter (Decimal Inch) | 2.3750 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 16 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | N. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | N.3R |
| Toolholder Material | Steel |
