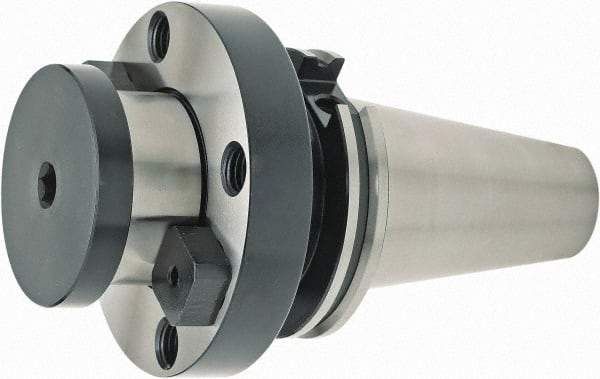

Parlec - CAT50 Dual Contact Taper Shank 50.8mm Pilot Diam Shell Mill Holder - 101.6mm Flange to Nose End Projection, 123.95mm Nose Diam, Through-Spindle Coolant
Item #: 48351548
Brand: Parlec
Model #: C50F-20SM4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Pilot Diameter (mm) | 50.80 |
| Pilot Diameter (Decimal Inch) | 2.0000 |
| Projection Flange to Nose End (mm) | 101.60 |
| Projection Flange to Nose End (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 123.95 |
| Nose Diameter (Decimal Inch) | 4.8800 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle |
