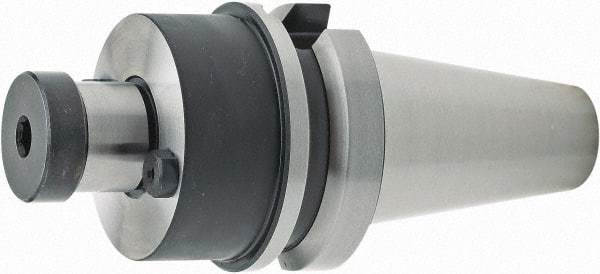

Parlec - BT30 Dual Contact Taper Shank 25.4mm Pilot Diam Shell Mill Holder - 44.96mm Flange to Nose End Projection, 60.45mm Nose Diam, Through-Spindle Coolant
Item #: 48351449
Brand: Parlec
Model #: B30F-10SM177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | BT30 |
| Pilot Diameter (mm) | 25.40 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Projection Flange to Nose End (mm) | 44.96 |
| Projection Flange to Nose End (Decimal Inch) | 1.7700 |
| Through Coolant | No |
| Nose Diameter (mm) | 60.45 |
| Nose Diameter (Decimal Inch) | 2.3800 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle |
