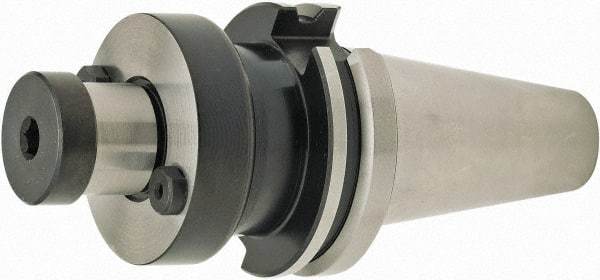

Parlec - CAT40 Dual Contact Taper Shank 31.75mm Pilot Diam Shell Mill Holder - 41.15mm Flange to Nose End Projection, 69.85mm Nose Diam, Through-Spindle Coolant
Item #: 48351407
Brand: Parlec
Model #: C40F-12SM1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Pilot Diameter (mm) | 31.75 |
| Pilot Diameter (Decimal Inch) | 1.2500 |
| Projection Flange to Nose End (mm) | 41.15 |
| Projection Flange to Nose End (Decimal Inch) | 1.6200 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 69.85 |
| Nose Diameter (Decimal Inch) | 2.7500 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle |
