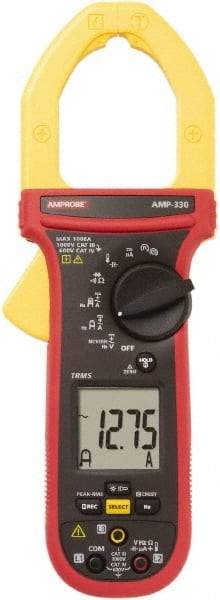

Amprobe - AMP-330, CAT IV, CAT III, Digital True RMS Clamp Meter with 2.0079" Clamp On Jaws - 1000 VAC/VDC, 1000 AC/DC Amps, Measures Voltage, Capacitance, Current, microAmps, Resistance, Temperature
Item #: 48330559
Brand: Amprobe
Model #: AMP-330
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Capacitance; Current; microAmps; Resistance; Temperature |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 2.0079 |
| CAT Rating | CAT IV; CAT III |
| Maximum DC Voltage | 1000 |
| Maximum AC Voltage | 1000 |
| Maximum DC Current (A) | 1000 |
| Maximum AC Current (A) | 1000 |
| Maximum Resistance (Ohms) | 60000 |
| Temp Measurement Range (C) | -40 - 400 |
| Temp Measurement Range (F) | -40 - 752 |
| Temp Measurement Range w/Included Probe (F) | -40 - 500 |
| Temp Measurement Range w/Included Probe (C) | -40 - 260 |
| Maxium Capacitance (mF) | 2.500 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Additional Functions | Peak; Crest; 0-20mA; Phase Rotation; NCV; Diode Test |
| Includes | Test Leads; Alligator Clips; Thermocouple; Manual; Case |
| Frequency | 999.9Hz |
| Counts | 6000 |
| Battery Type | (2) AA |
| Standards Met | IEC61010; IEC61326 |
| PSC Code | 6625 |
