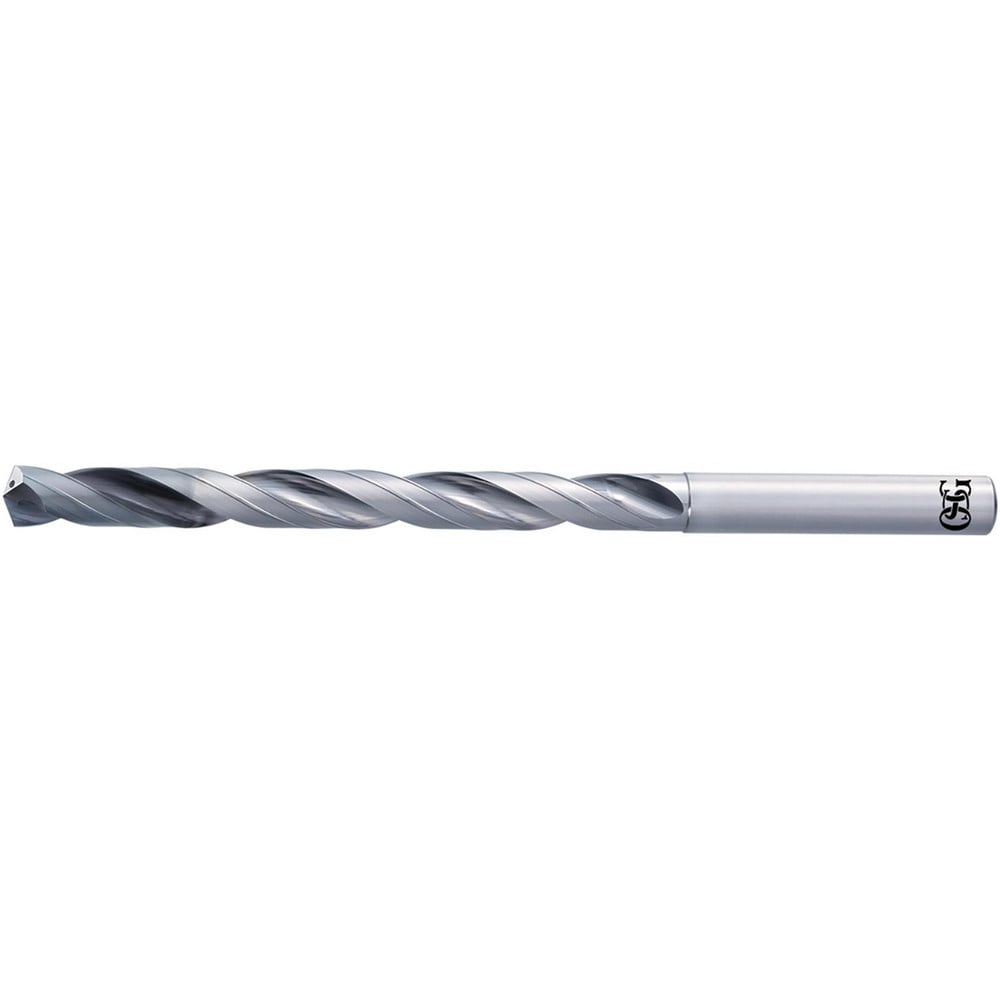

Brand: OSG / Part #: 8685000
Item #: 80083371
Brand: OSG
Model #: 8685000
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | WXL |
| Flute Length (mm) | 110.00 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (mm) | 160.0000 |
| Shank Diameter (mm) | 10.0000 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | 5220 |
| Flute Length X Diameter Ratio | 8xD |
| Drill Bit Diameter Tolerance | +0 / -0.022 mm |
| Tool Application | Through Hole Drilling; Blind Hole; Self-Centering |
| Tool Performance | High Performance |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
