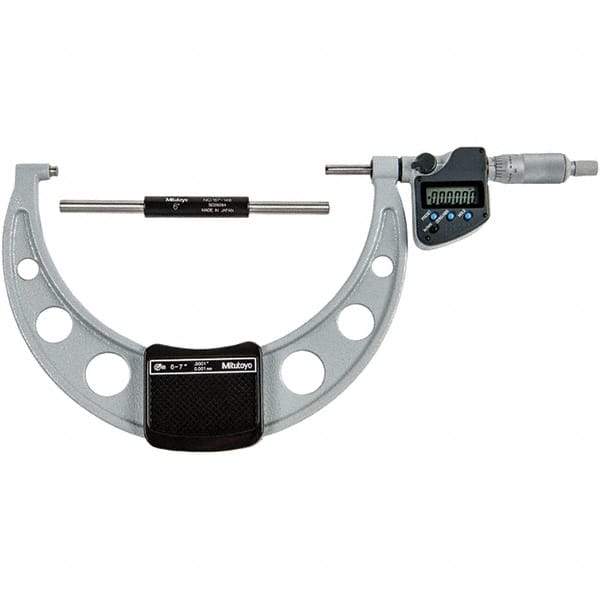

Mitutoyo - 6 to 7" Range, 0.0001" Resolution, Standard Throat IP65 Electronic Outside Micrometer - 0.00015" Accuracy, Ratchet Stop Thimble, Carbide-Tipped Face, SR44 Battery
Item #: 47907621
Brand: Mitutoyo
Model #: 293-352-30
Exact Tooling IR#: 04
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They may cause microshocks and require two hands to make a measurement.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 6.0000 |
| Maximum Measurement (Decimal Inch) | 7.0000 |
| Thimble Type | Ratchet Stop |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000100 |
| Throat Depth (Decimal Inch) | 4.0600 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000150 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | Yes |
| Spindle Style | Rotating |
| Data Output | SPC |
| Data Output | Yes |
| Measuring Face Material | Carbide-Tipped |
| Finish/Coating | Enamel (Frame) |
| Battery Type | SR44 |
| Includes | Plastic Case; Certification of Inspection |
