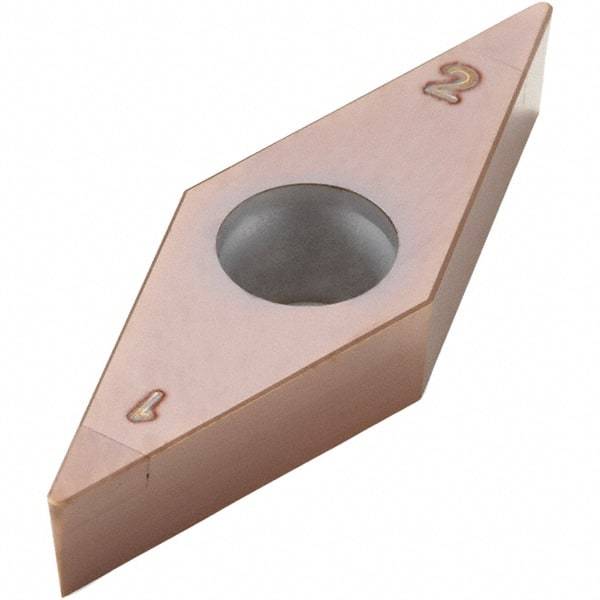

Seco - VBGW332S Grade CH2540 PCBN Turning Insert - TiSiN Finish, 35° Diamond, 3/8" Inscr Circle, 0.031496" Corner Radius
Item #: 47902200
Brand: Seco
Model #: 56596
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 332S |
| Material | PCBN |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | CH2540 |
| Coating | TiSiN |
| Material Grade | H25 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Relief Angle | 5 |
| Primary Workpiece Material | H |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Secomax |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
