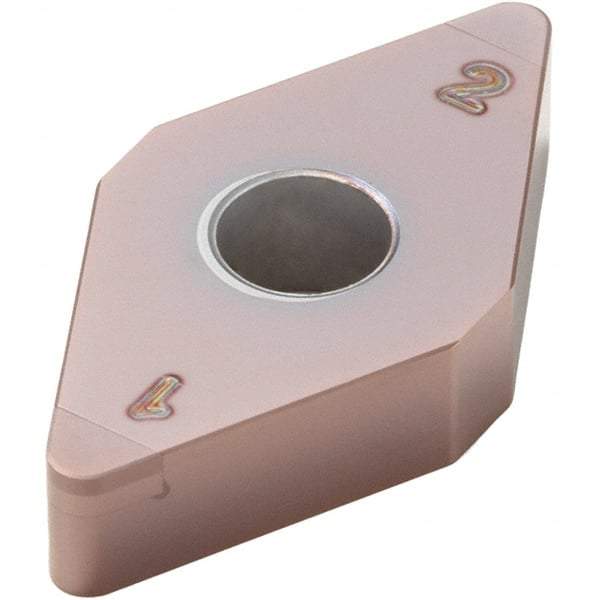

Seco - DNGA443S Grade CH2540 PCBN Turning Insert - TiSiN Finish, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick
Item #: 47901806
Brand: Seco
Model #: 57995
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGA |
| Insert Size | 443S |
| Material | PCBN |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Manufacturer's Grade | CH2540 |
| Coating | TiSiN |
| Material Grade | H25 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Relief Angle | 0 |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Secomax |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
