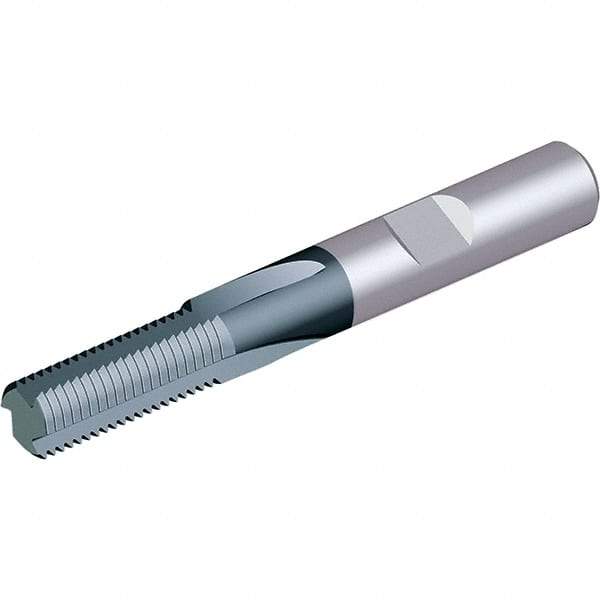

Vargus - 9/16-12 Thread, 0.4724" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 5 Flutes, 3.2677" OAL, 9/16" Min Noml Diameter
Item #: 47548631
Brand: Vargus
Model #: 100-00031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 12 |
| Thread Size (Inch) | 9/16-12 |
| Minimum Nominal Diameter (Inch) | 9/16 |
| Material | Solid Carbide |
| Thread Type | External |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.4685 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 1.1665 |
| Thread Standard | UN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.2677 |
| Through Coolant | No |
| Material Grade | VTS |
