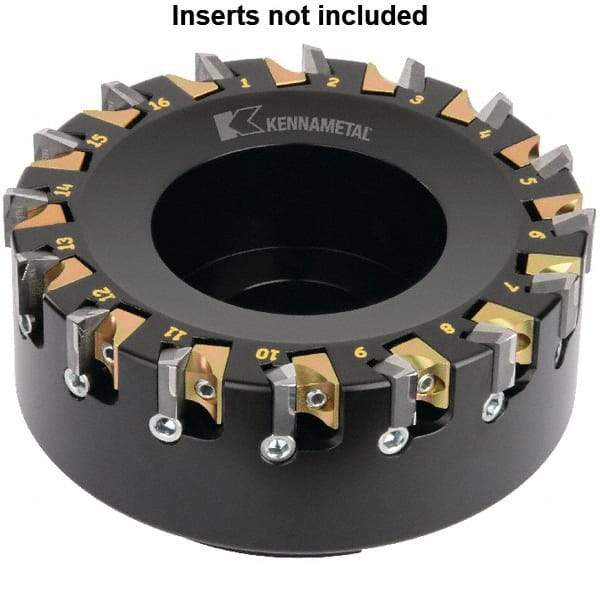

Kennametal - 30 Inserts, 250mm Cut Diam, 60.01mm Arbor Diam, 4.9mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, KSDR100031E1W4S Insert Compatibility, Through Coolant, Series KBDM
Item #: 47499942
Brand: Kennametal
Model #: 6207836
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250.00 |
| Arbor Hole Diameter (mm) | 60.01 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | KSDR100031E1W4S |
| Series | KBDM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 4.90 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Clamp |
| Cutter Style | KBDM |
| Number of Flutes | 30 |
| Hub Diameter (Inch) | 6-1/2 |
| Maximum Body Diameter (Decimal Inch) | 9.7830 |
| Maximum RPM | 11000 |
| Toolholder Material | Aluminum |
