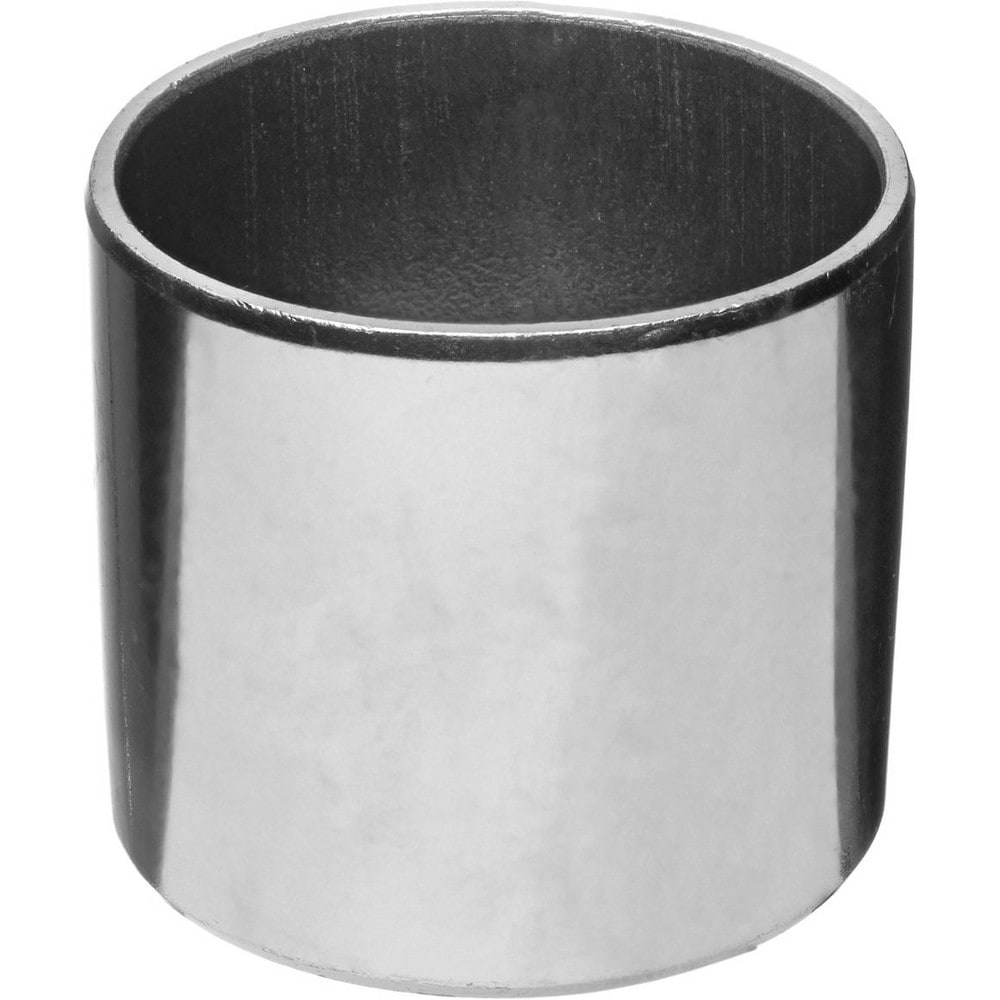

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 15/32; Outside Diameter (Decimal Inch - 4 Decimals): 0.4688; Inside Diameter (Inch): 3/8; Inside Diameter (Decimal Inch): 0.3750
Item #: 76815026
Brand: USA Industrials
Model #: ZUSAB-PB-867
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 15/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.4688 |
| Inside Diameter (Inch) | 3/8 |
| Inside Diameter (Decimal Inch) | 0.3750 |
| Material | Steel |
| Overall Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 0.7500 |
| Static Load Capacity | 52568.63 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.4690 |
| Housing Bore Limits Mininum | 0.4680 |
| Inside Diameter (mm) | 9.5300 |
| Overall Length (mm) | 19.05 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
