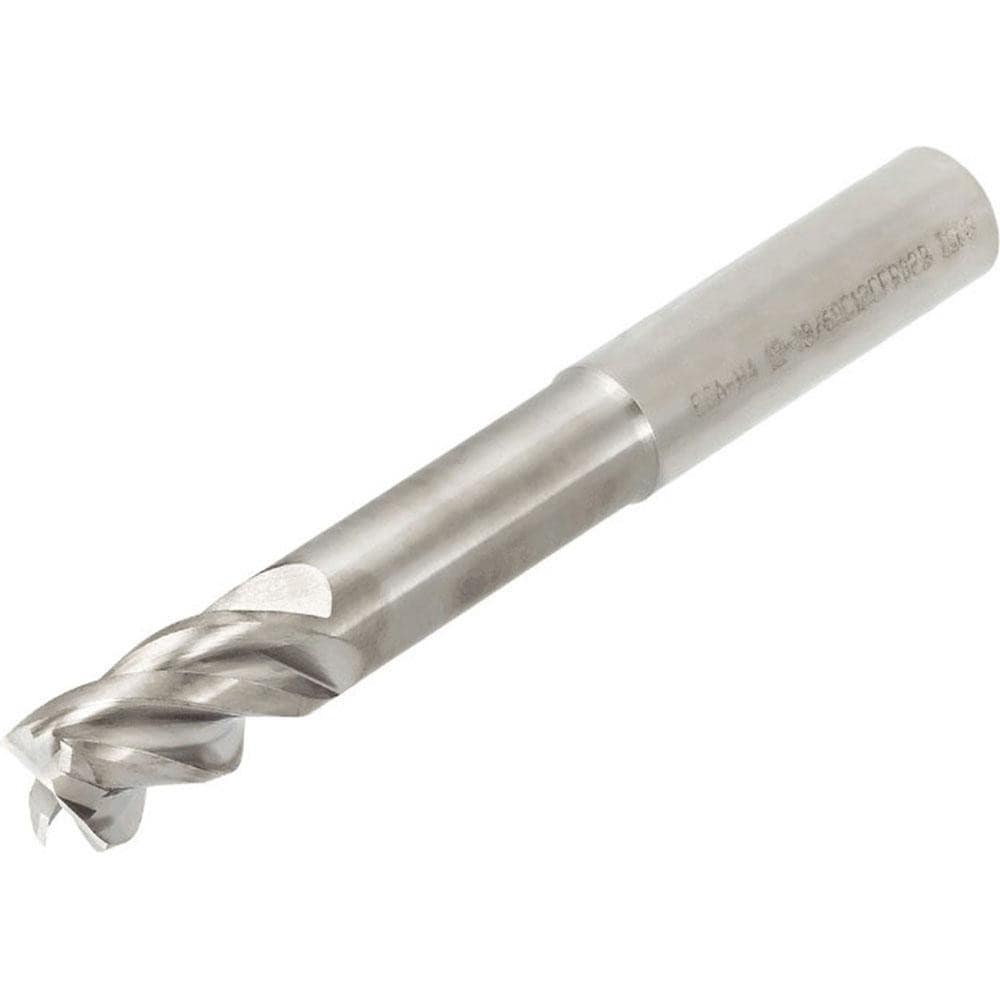

Corner Radius End Mill: 16 mm Dia, 24.00 mm LOC, 4 Flute, Solid Carbide
Item #: 34000471
Brand: Tungaloy
Model #: 5623336
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 24.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 128.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Length Type | Long |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 16.00 |
| Neck Diameter (mm) | 15.50 |
| Reach Length (mm) | 80.00 |
| Primary Workpiece Material | Aluminum |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Material Grade | KS15F |
| Series | TECA-H4-CF-R |
| For Use With. | ER Collet; Shrink Fit Holder; Hydraulic Holder; Milling Chuck Sleeve |
