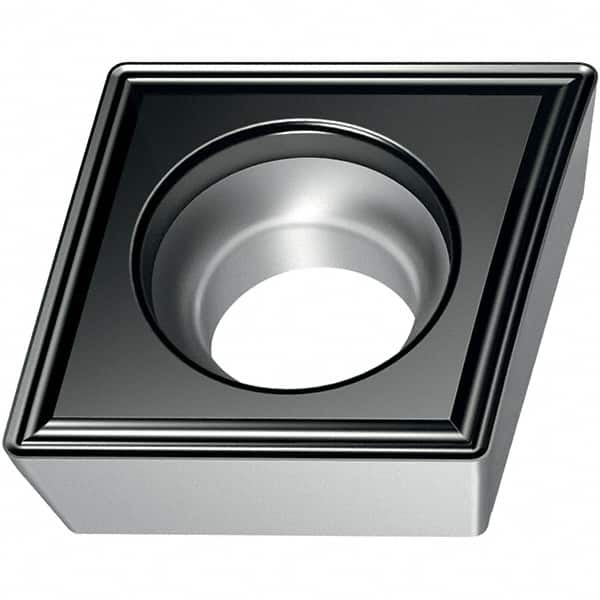

CCMT09T308-FM6 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 9.67mm Long, 9.53mm Inscribed Circle, 0.8mm Corner Radius, 3.97mm Thick, 80° Rhombic 80, Series CCMT-FM6
Item #: 47337597
Brand: Walter
Model #: 7054135
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 09T308 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM20S |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 9.67 |
| Maximum Depth of Cut (Decimal Inch) | 0.3810 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCMT-FM6 |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3810 |
| Insert Length (mm) | 9.67 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | CCMT3(2.5)2FM6WSM20S |
| Iso Code | CCMT09T308-FM6 WSM20S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7054135 |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | WSM20S |
| Chip Breaker | FM6 |
| Coating/Finish | Al; TiAlN; Al2O3 |
 | |
| MSC Part # | 47337597 |
| Mfr Part # | 7054135 |
| Country of OriginCountry of Origin is subject to change | Germany |
