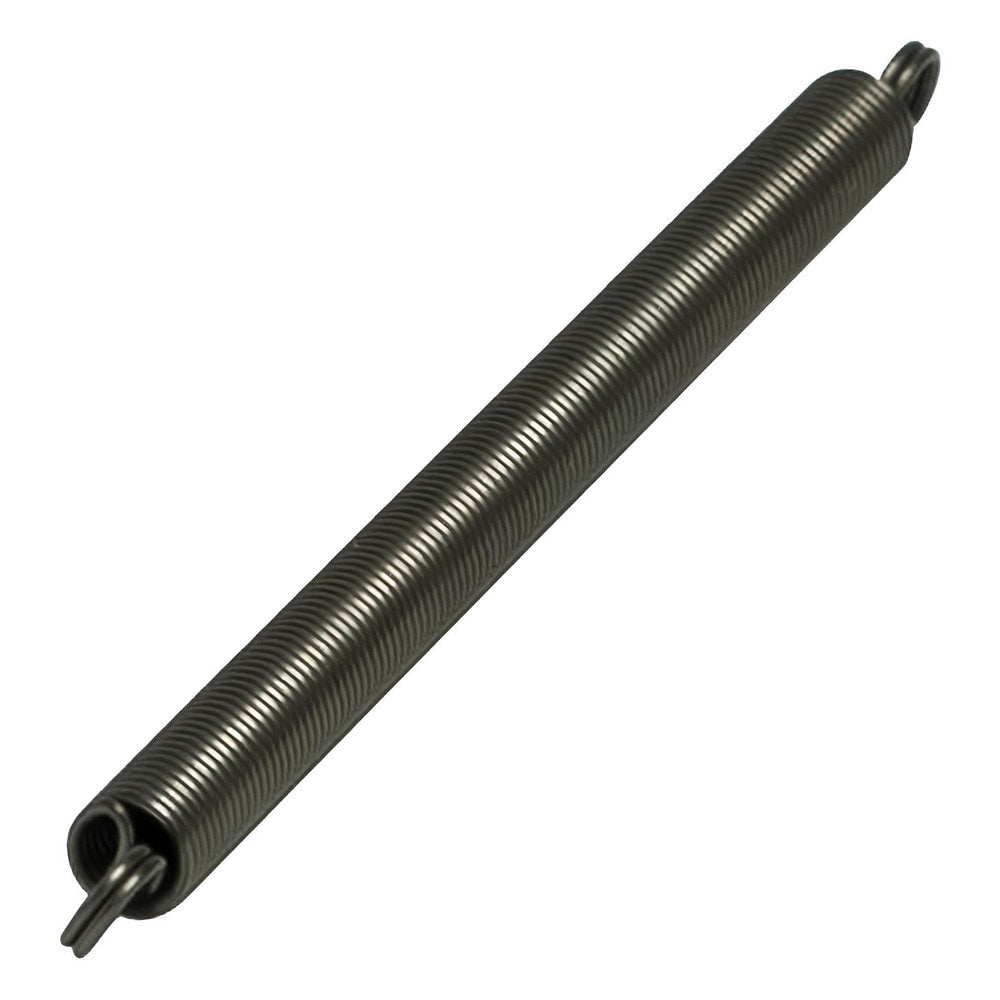

Extension Springs; End Type: Double Loop; Outside Diameter (Decimal Inch
Item #: 03316361
Brand: Associated Spring Raymond
Model #: MCDE0250010600M
Product Specifications
| End Type | Double Loop |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.2500 |
| Spring Rate | 0.8000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 6.0640 |
| Initial Tension (Lb.) | 1.06 |
| Maximum Extended Length (Decimal Inch) | 10.3200 |
| Free Length (Inch) | 6 |
| Inside Hook Length (Fractional Inch) | 6 |
| Standards | AMS 5112; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (Decimal Inch) | 0.0320 |
| UNSPSC Code | 31161907 |
