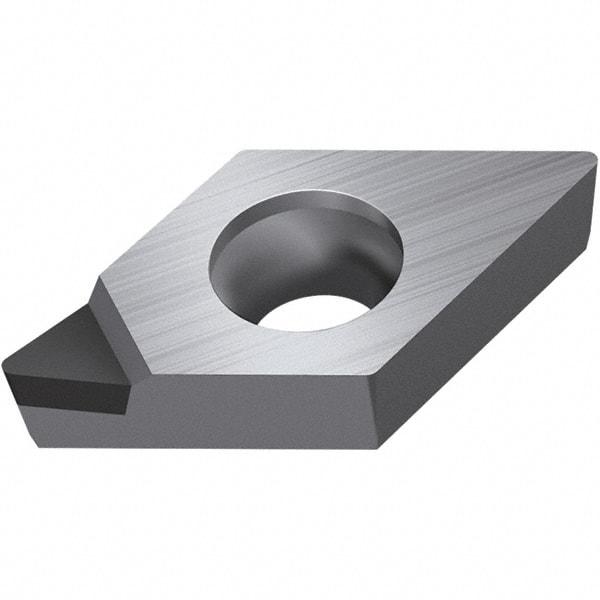

Walter - DPGW FS-1 Grade WDN10 Turning Insert - Polycrystaline Diamond Finish, 55° Rhombic, 9.53mm Inscr Circle, 3.97mm Thick, 0.4mm Corner Radius
Item #: 47310248
Brand: Walter
Model #: 7132680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | DPGW |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WDN10 |
| Coating | Polycrystaline diamond |
| Chip Breaker | FS-1 |
| Insert Length (Decimal Inch) | 0.4580 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4580 |
| Insert Length (mm) | 11.6279 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | DPGW11T304FS-1 WDN10 |
| Relief Angle | 11 |
| Proprietary Coating Designation | WDN10 |
| Manufacturers Catalog Number | 7132680 |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | DPGW_FS-1 |
| Maximum Depth of Cut (mm) | 11.63 |
| Maximum Depth of Cut (Decimal Inch) | 0.4580 |
| Cutting Width (mm) | 11.63 |
| Shape | Rhombic 55 |
