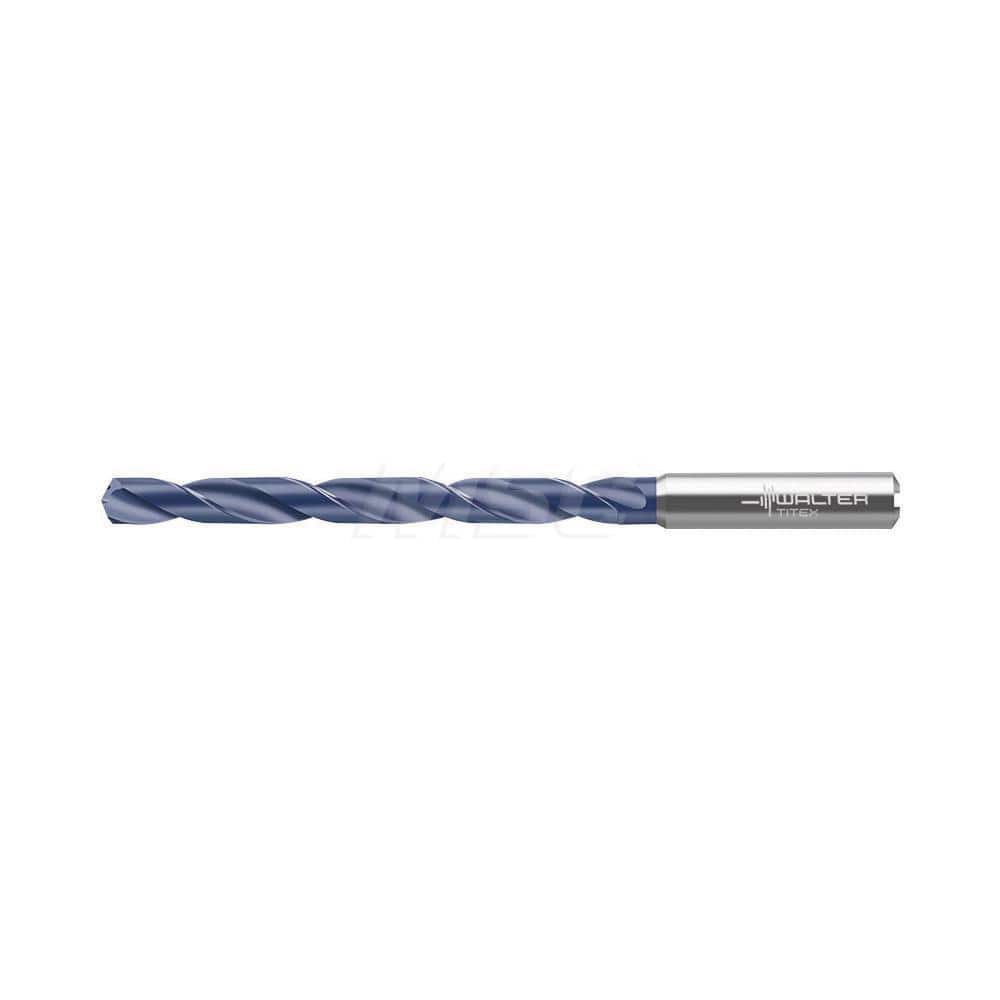

Jobber Length Drill Bit: 0.7677″ Dia, 140 °, Solid Carbide TiNAl Finish, 9.606″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-08-A1
Item #: 47308747
Brand: Walter-Titex
Model #: 6618745
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7677 |
| Drill Bit Size (mm) | 19.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiNAl |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Overall Length (mm) | 244.00 |
| Overall Length (Decimal Inch) | 9.6060 |
| Flute Length (mm) | 190.00 |
| Flute Length (Decimal Inch) | 7.4800 |
| Series | DC150-08-A1 |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 20.00 |
| Maximum Drilling Depth (Decimal Inch) | 6.6930 |
| Maximum Drilling Depth (mm) | 170.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9690 |
| Drill Point Length (mm) | 3.55 |
| Drill Point Length (Decimal Inch) | 0.1400 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Grade | WJ30TA |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
