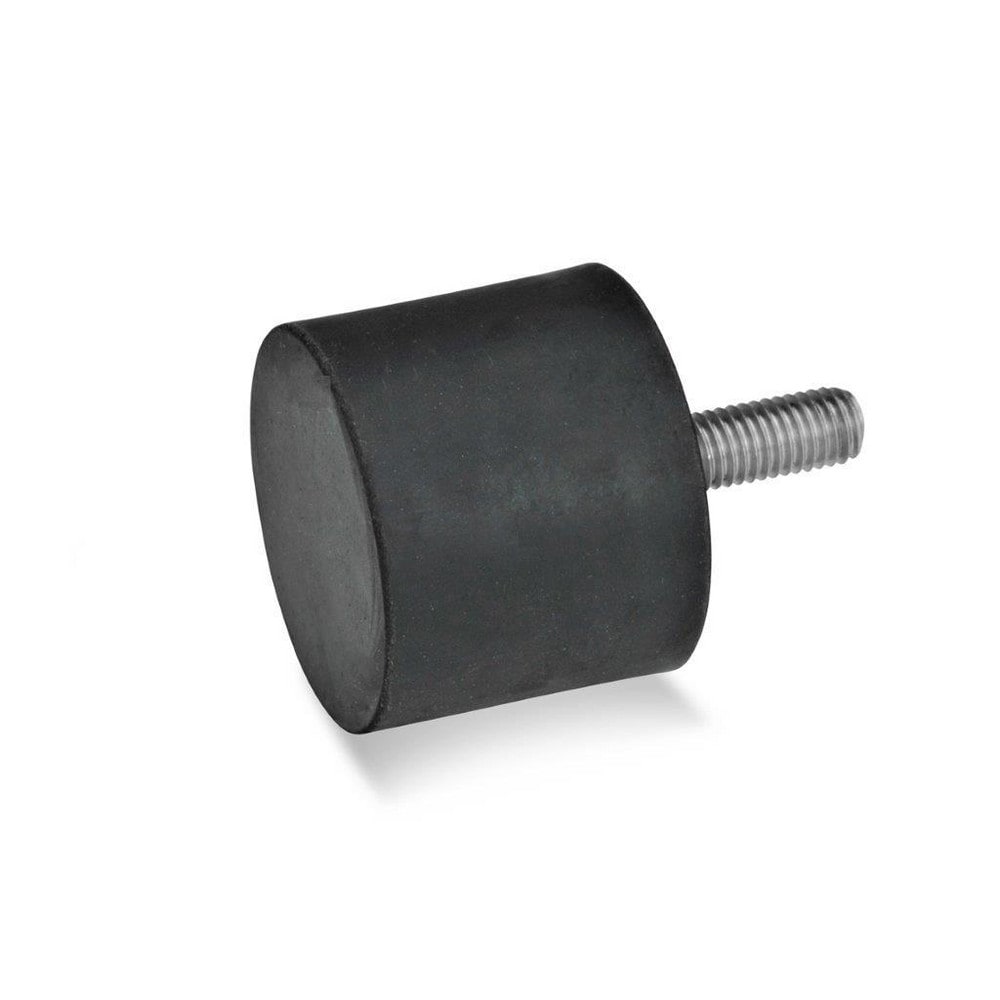

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 51.00 N; Top Diameter: 8.00; Bottom Diameter: 8; Thread Size: M3x0.5; Overall Width: 8 mm
Item #: 71021265
Brand: J.W. Winco
Model #: 452-8-13-M3-S-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 51.00 N |
| Top Diameter | 8.00 |
| Bottom Diameter | 8 |
| Thread Size | M3x0.5 |
| Overall Width | 8 mm |
| Overall Diameter | 8 mm |
| Thread Length (Decimal Inch) | 0.2400 |
| Deflection | 0.1300 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.5 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 19 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 51.00 N |
| Top Diameter | 8.00 |
| Bottom Diameter | 8 |
| Thread Size | M3x0.5 |
| Overall Width | 8 mm |
| Overall Diameter | 8 mm |
| Thread Length (Decimal Inch) | 0.2400 |
| Deflection | 0.1300 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.5 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 19 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71021265 |
| Mfr Part # | 452-8-13-M3-S-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
