CNC Mill Drill Machines; Phase: 3; Table Length (Inch): 49; Table Width (Inch): 9; Longitudinal Travel (Decimal Inch): 35.0000; Cross Travel (Decimal Inch): 13.5000; Number of Spindle Speeds: Variable; Minimum Spindle Speed (RPM): 60.00; Maximum Spindle S
Item #: 47251665
Brand: Value Collection

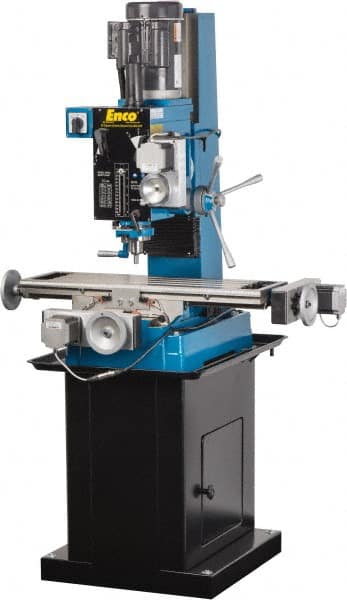

Model #: CNC ENCO MILL
Product Specifications
| Phase | 3 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Longitudinal Travel (Decimal Inch) | 35.0000 |
| Cross Travel (Decimal Inch) | 13.5000 |
| Number of Spindle Speeds | Variable |
| Minimum Spindle Speed (RPM) | 60.00 |
| Maximum Spindle Speed (RPM) | 4200 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Taper Size | R8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Minimum Spindle to Table Distance (Inch) | 0 |
| Maximum Spindle to Table Distance (Inch) | 18 |
| Number of T-Slots | 3 |
| T-Slot Size (Inch) | 5/8 |
| Left-Hand Head Tilt (Degrees) | 45.00 |
| Right-Hand Head Tilt (Degrees) | 45.00 |
| Horsepower (HP) | 2 |
| Voltage | 220/440 |
| Overall Length (Inch) | 74 |
| Overall Depth (Inch) | 71 |
