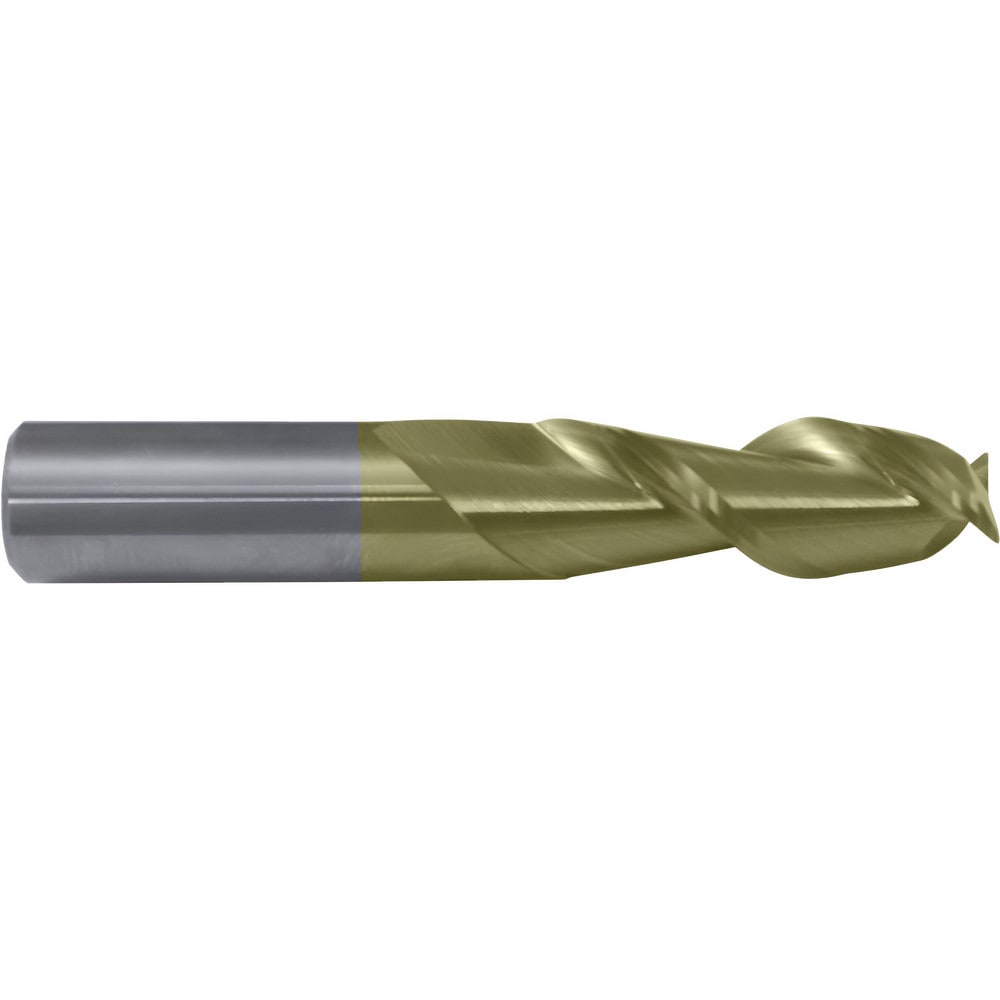

Square End Mill: 5/8" Dia, 2-1/2" LOC, 2 Flute, Solid Carbide
Item #: 67143479
Brand: Cleveland
Model #: C84024
Product Specifications
| Mill Diameter (mm) | 15.88 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.5000 |
| Length of Cut (Inch) | 2-1/2 |
| Length of Cut (mm) | 63.50 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | ZrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | ZrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-AM2-ZN |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 15.88 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.5000 |
| Length of Cut (Inch) | 2-1/2 |
| Length of Cut (mm) | 63.50 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | ZrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | ZrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-AM2-ZN |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 67143479 |
| Mfr Part # | C84024 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
