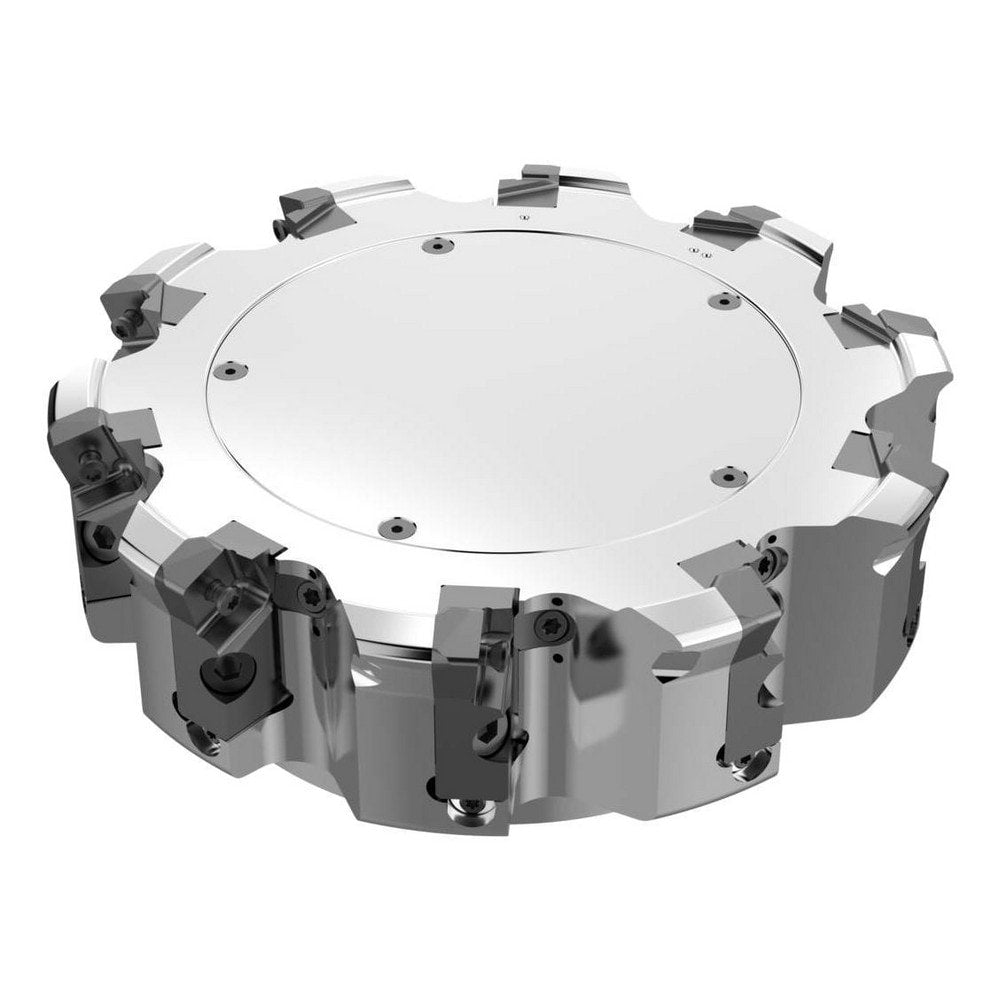

Indexable High-Feed Face Mills; Cutting Diameter (mm): 199.50; Minimum Cutting Diameter (mm): 199.50; Maximum Cutting Diameter (mm): 228.00
Item #: 82807140
Brand: Seco
Model #: 10135933
Product Specifications
| Cutting Diameter (mm) | 199.50 |
| Minimum Cutting Diameter (mm) | 199.50 |
| Maximum Cutting Diameter (mm) | 228.00 |
| Maximum Depth of Cut (mm) | 4.10 |
| Compatible Insert Size Code | SPKT180630 |
| Maximum Ramping Angle | 0.4 |
| Cutter Style | R220.21 |
| Cutting Direction | Right Hand |
| Insert Compatibility | SPKT180630 |
| Insert Holding Method | Screw |
| Series | R220.21-SP18 |
| Keyway Width (mm) | 25.70 |
| Overall Height (Mm - 5 Decimals) | 80.00000 |
| Maximum RPM | 3000.000 |
| Tool Application | Face Milling |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Complete Insert Compatibility | SPKT180630 |
| Manufacturers Catalog Number | 10135933 |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
| Coolant Through | Yes |
| Hub Diameter (Decimal Inch) | 5.1180 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
