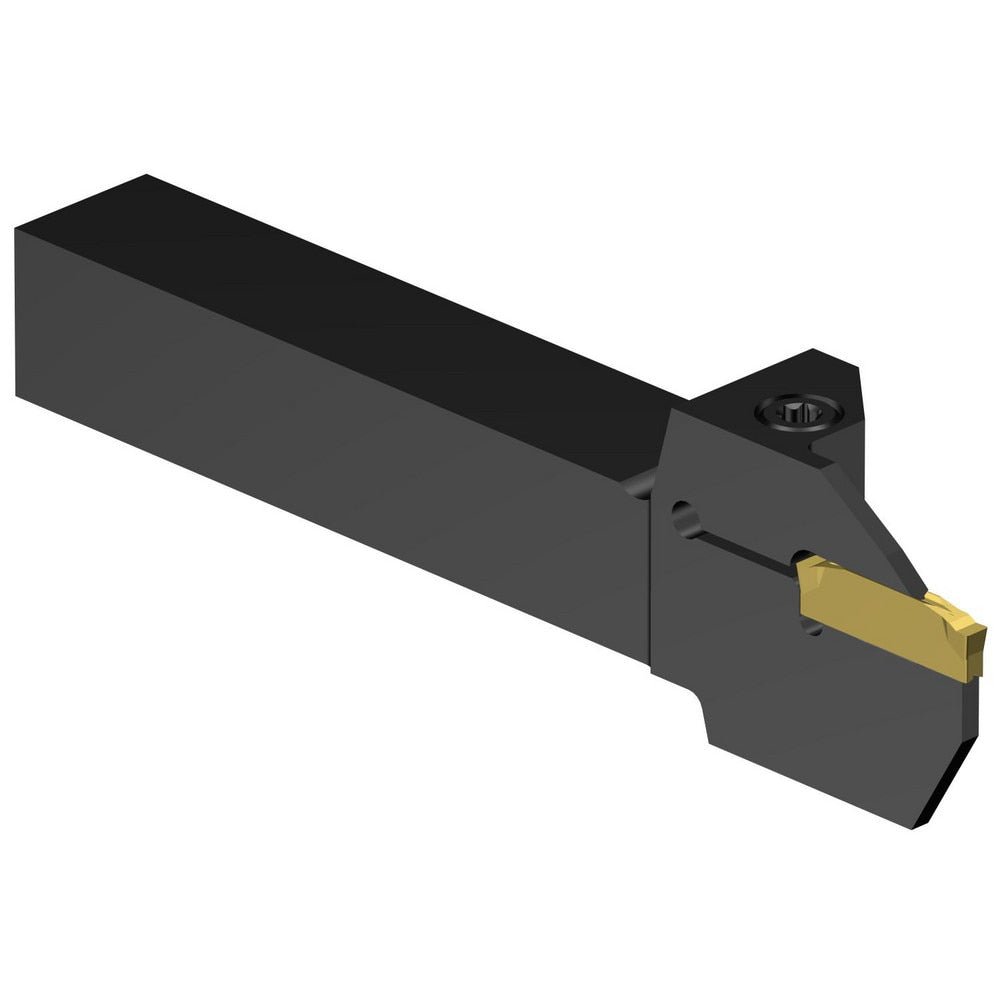

Indexable Grooving/Cut-Off Toolholders; Hand of Holder: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.7900; Maximum Depth of Cut (mm): 20.07; Maximum Groove Width (Decimal Inch): 0.1098; Maximum Groove Width (mm): 2.79; Minimum Groove Width (Decimal I
Item #: 05990395
Brand: Sandvik Coromant
Model #: 8196311
Product Specifications
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Maximum Depth of Cut (mm) | 20.07 |
| Maximum Groove Width (Decimal Inch) | 0.1098 |
| Maximum Groove Width (mm) | 2.79 |
| Minimum Groove Width (Decimal Inch) | 0.0941 |
| Minimum Groove Width (mm) | 2.39 |
| Toolholder Style | C2R-RSA..R/L..DB |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | F2 |
| Insert Compatibility | C2I-F2-0250- |
| Shank Height (mm) | 15.88 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (mm) | 15.88 |
| Series | CoroCut 2 |
| Cutting Tool Application | Grooving; Cut-Off; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Height (Decimal Inch) | 0.625 |
| Head Height (mm) | 15.880 |
| Manufacturers Catalog Number | C2R-RSA10-LF20DB |
| Complete Insert Compatibility | CoroCut 2 -size F (C2I-F2-0250-) |
| Insert Seat Size | 2.5 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
