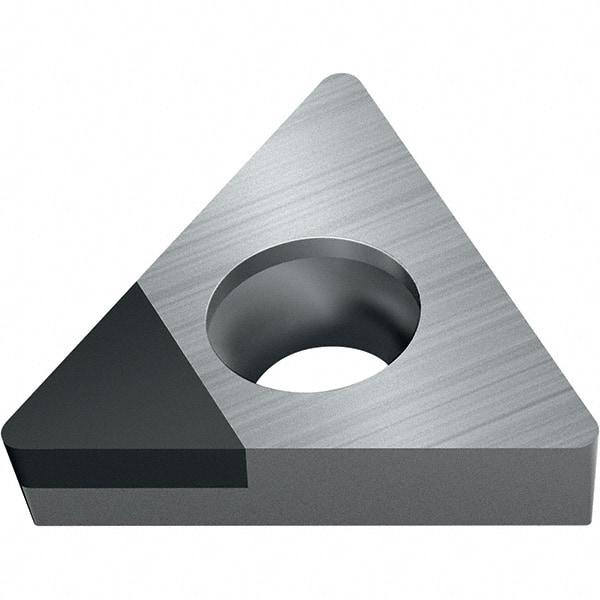

Walter - TCGW0902 FS Grade WDN10 Polycrystalline Diamond (PCD) Turning Insert - 60° Triangle, 0.225" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 47053921
Brand: Walter
Model #: 6674452
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TCGW |
| Insert Size | 0902 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.2250 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WDN10 |
| Chip Breaker | FS |
| Insert Length (Decimal Inch) | 0.3689 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Triangle |
