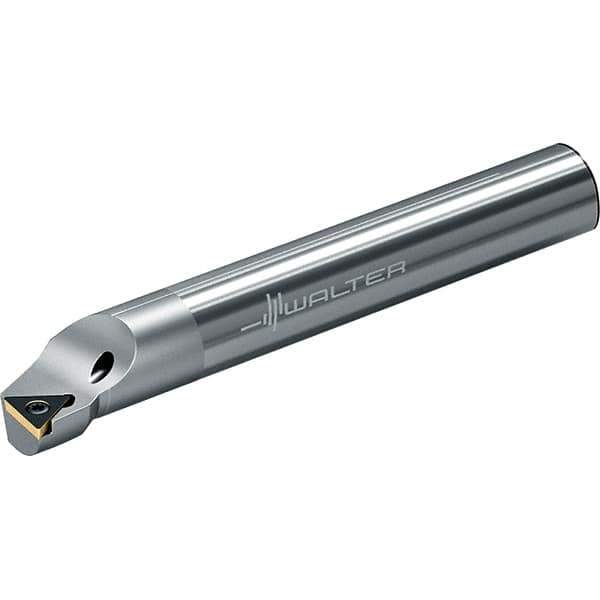

Walter - STFC, Left Hand Cut, 91° Lead Angle, 25mm Shank Height x 25mm Shank Width, Positive Rake Indexable Turning Toolholder - 250mm OAL, TC..1102.. Insert Compatibility, Series E20S
Item #: 47052360
Brand: Walter
Model #: 6344653
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | STFC |
| Rake | Positive |
| Series | E20S |
| Lead Angle | 91 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | TC..1102.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Toolholder Material | Carbide |
