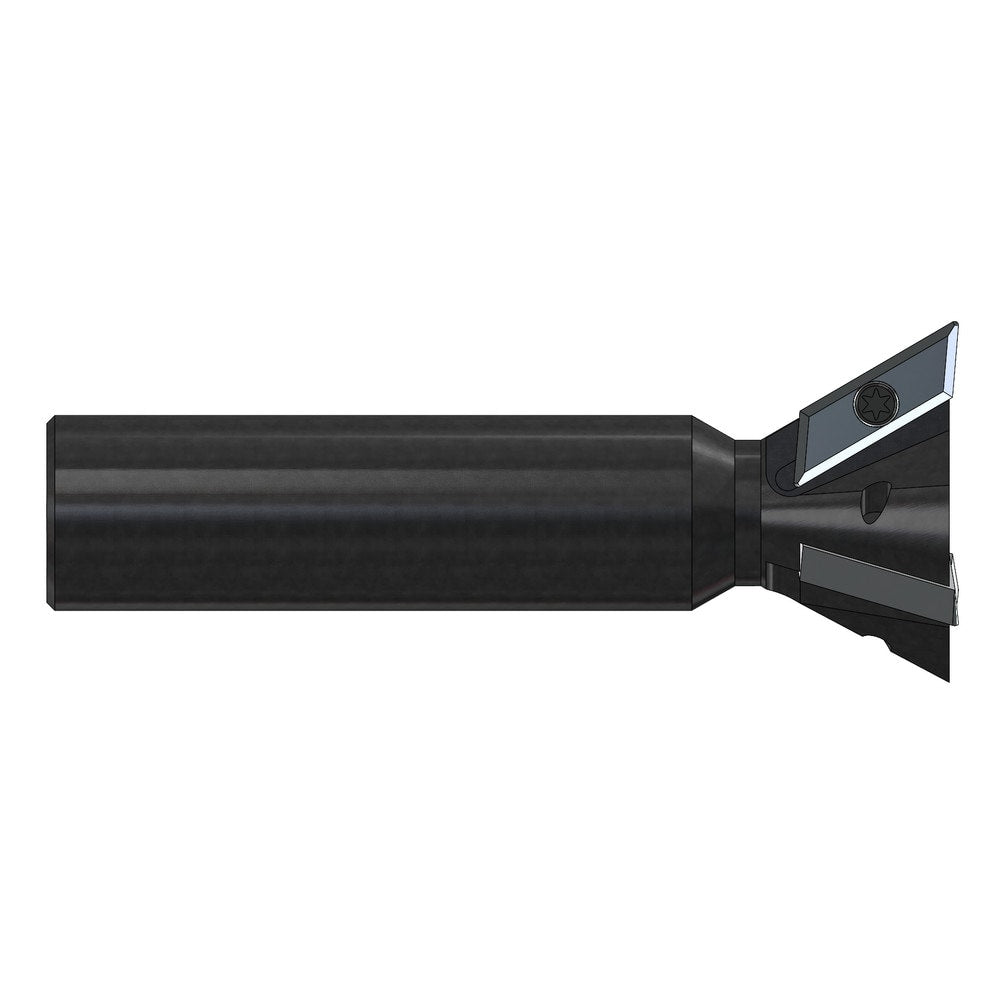

Indexable Dovetail Cutters; Included Angle: 60.00; Cutting Diameter: 1.5000 in; Maximum Depth Of Cut: 0.6000 in; Shank Type: Cylindrical; Shank Diameter: 0.7500; Compatible Insert Style: Di60L; Compatible Insert Size Code: Di60L; Through Coolant: No
Item #: 99233546
Brand: A.B. Tools
Model #: DXL60-1.50
Product Specifications
| Included Angle | 60.00 |
| Cutting Diameter | 1.5000 in |
| Maximum Depth Of Cut | 0.6000 in |
| Shank Type | Cylindrical |
| Shank Diameter | 0.7500 |
| Compatible Insert Style | Di60L |
| Compatible Insert Size Code | Di60L |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length | 3.50 |
| Series | DEXI-DOVETAIL |
| Head Length | 0.6000 in |
| Rake Angle | 10.000 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | S |
| UNSPSC Code | 23241632 |
| Country of Origin | UNITED STATES |
