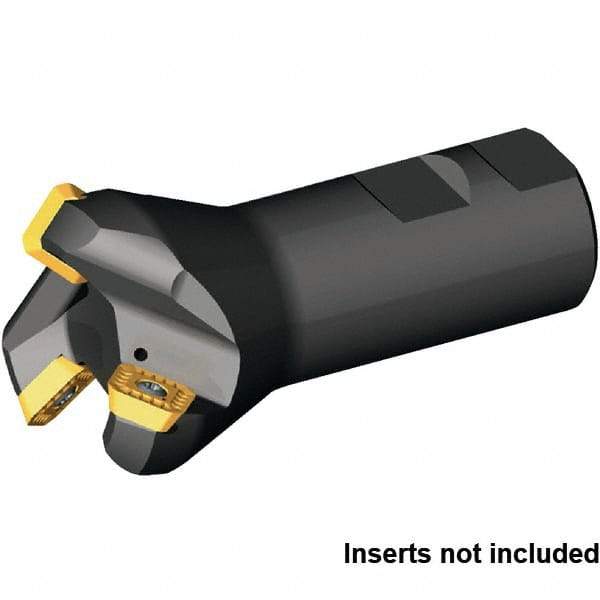

Kennametal - 45° Lead Angle, 53.95mm Max Cut Diam, 40mm Min Cut Diam, 6.61mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SECW 1404AEENLN Insert Style, 110mm Overall Length, Through Coolant, Straight Shank
Item #: 46889861
Brand: Kennametal
Model #: 1926943
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5748 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 53.95 |
| Maximum Cutting Diameter (Decimal Inch) | 2.1240 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | SECW 1404AEENLN |
| Series | KSSM 45 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2602 |
| Maximum Depth of Cut (mm) | 6.61 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Weldon Flat | Yes |
| Shank Length (mm) | 61.00 |
| Shank Length (Decimal Inch) | 2.4016 |
| Maximum RPM | 26000 |
