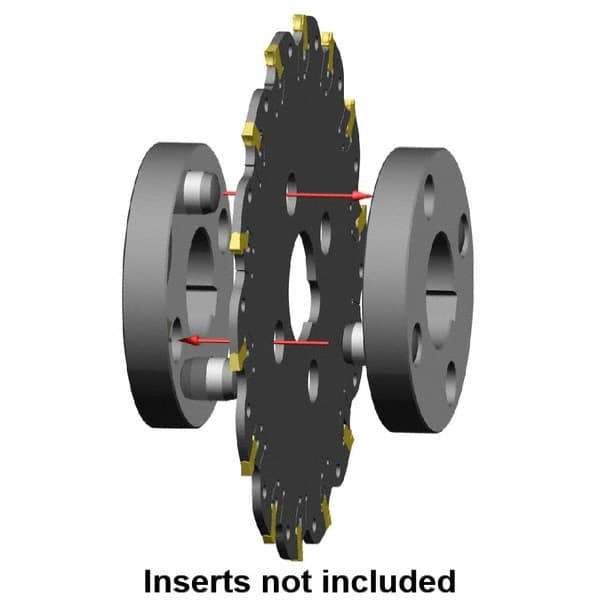

Kennametal - Arbor Hole Connection, 0.1575" Cutting Width, 1.378" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 11 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 46889564
Brand: Kennametal
Model #: 1246145
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 11 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 2600 |
| Minimum Cutting Width (Decimal Inch) | 0.1575 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Cutter Body Width (mm) | 3.40 |
| Cutter Body Width (Decimal Inch) | 0.1339 |
| Complete Insert Compatibility1 | 3.90040.. |
