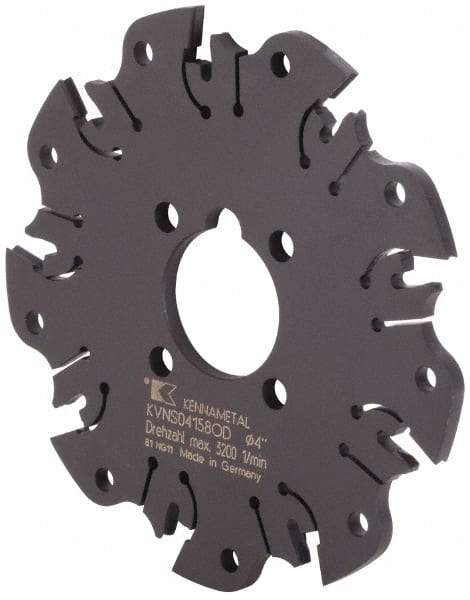

Kennametal - Arbor Hole Connection, 0.164" Cutting Width, 1-1/16" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 9 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 4158.. Insert
Item #: 46889481
Brand: Kennametal
Model #: 1247732
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.17 |
| Cutting Width (Decimal Inch) | 0.1640 |
| Maximum Depth of Cut (mm) | 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Cutter Diameter (mm) | 101.60 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 9 |
| Toolholder Style | KVNS |
| Series | KVNS |
| Insert Style | OD 4158.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 3200 |
| Minimum Cutting Width (Decimal Inch) | 0.1640 |
| Cutter Body Width (mm) | 3.40 |
| Cutter Body Width (Decimal Inch) | 0.1339 |
