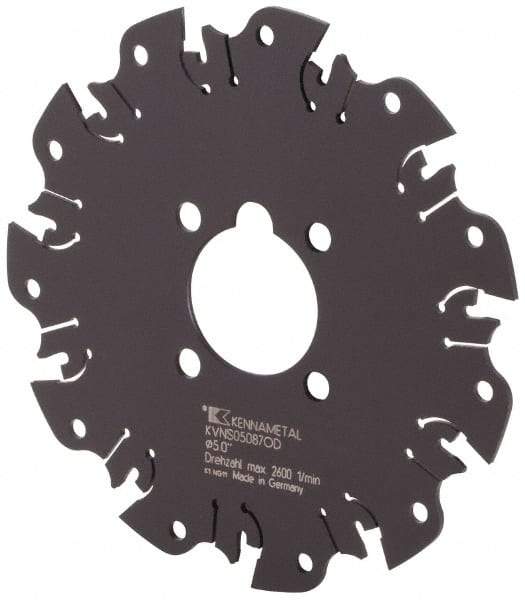

Kennametal - Arbor Hole Connection, 0.089" Cutting Width, 1-3/8" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 11 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 2087.. Insert
Item #: 46889457
Brand: Kennametal
Model #: 1247740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.26 |
| Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Depth of Cut (mm) | 34.93 |
| Maximum Depth of Cut (Decimal Inch) | 1.3750 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 11 |
| Toolholder Style | KVNS |
| Series | KVNS |
| Insert Style | OD 2087.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 2600 |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Cutter Body Width (mm) | 1.80 |
| Cutter Body Width (Decimal Inch) | 0.0709 |
