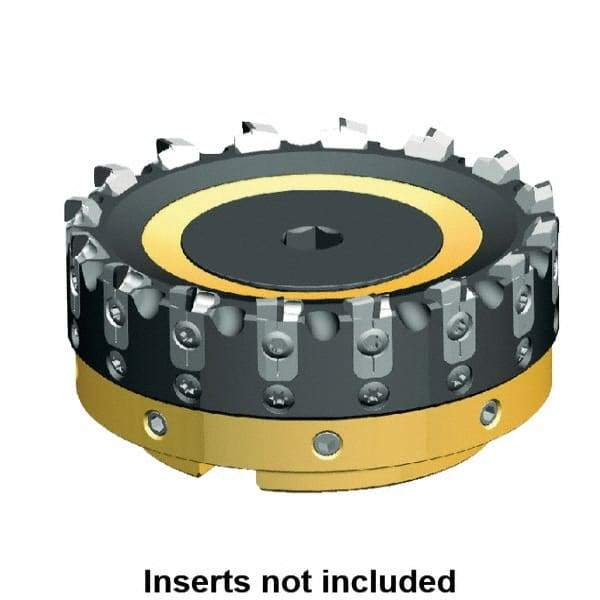

Kennametal - 18 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, Series AluMill
Item #: 46870234
Brand: Kennametal
Model #: 2881509
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | AluMill |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 18 |
| Cutter Style | KSCM |
| Number of Flutes | 18 |
| Hub Diameter (mm) | 115.50 |
| Hub Diameter (Decimal Inch) | 4.5472 |
| Maximum Body Diameter (Decimal Inch) | 6.2402 |
| Number of Adjustable Pockets | 18 |
| Maximum RPM | 15000 |
