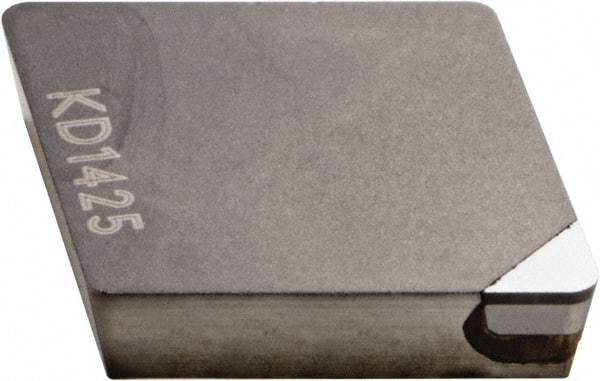

Kennametal - CPG422 Grade KD1425 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 46868162
Brand: Kennametal
Model #: 3648331
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CPG |
| Insert Size | 422 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| ISO Number | CPGN120308F |
| Relief Angle | 11 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kendex |
| Insert Holding Method | Clamp |
| Shape | Diamond |
