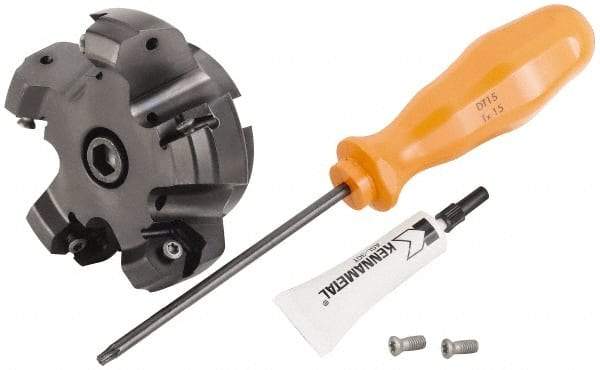

Kennametal - 5 Inserts, 3.245" Cutter Diam, 0.087" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 1.595" High, KSHR Toolholder, HNGJ 0905.. Inserts, Series Dodeka High-Feed
Item #: 46865754
Brand: Kennametal
Model #: 4047420
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.2450 |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5950 |
| Series | Dodeka High-Feed |
| Cutter Style | KSHR |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | HNGJ 0905.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8900 |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 3.1420 |
| Through Coolant | Yes |
| Complete Insert Compatibility | HNGJ 0905ANENLD |
