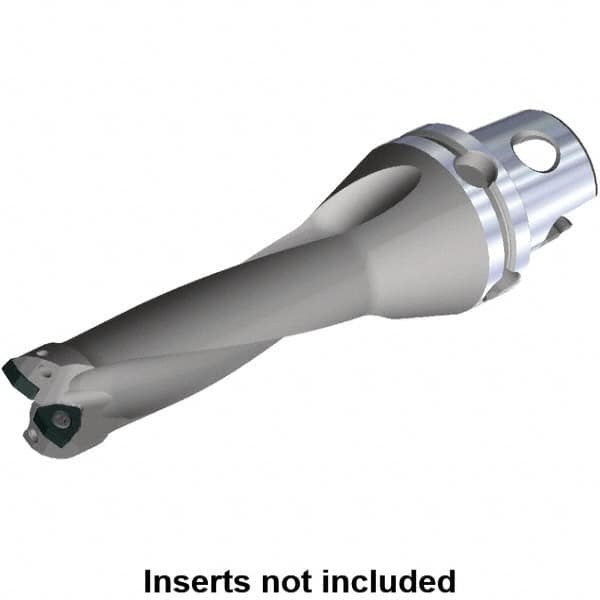

2-1/16″ Max Drill Depth, 3xD, 11/16″ Diam, Indexable Insert Drill Drill Style DFT, Takes 2 Inserts, 50mm Shank Diam, Modular Connection
Item #: 46863965
Brand: Kennametal
Model #: 1247499
Product Specifications
| Drill Style | DFT |
| Maximum Drill Diameter (mm) | 19.09 |
| Drill Diameter (Decimal Inch) | 0.6875 |
| Maximum Drill Diameter (Decimal Inch) | 0.7515 |
| Maximum Drill Depth (Inch) | 2-1/16 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Series | Drill-Fix |
| Flute Length (Decimal Inch) | 2.8346 |
| Flute Length (mm) | 72.00 |
| Body Length | 97.40 |
| Body Length (Decimal Inch) | 3.8345 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Modular Connection Size | KM50 |
| Overall Length/Projection (Decimal Inch) | 3.8345 |
| Overall Length/Projection (mm) | 97.40 |
| Insert Compatibility (Outside or Peripheral) | DFT 0302.. |
| Insert Compatibility | DFT 0302.. |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
