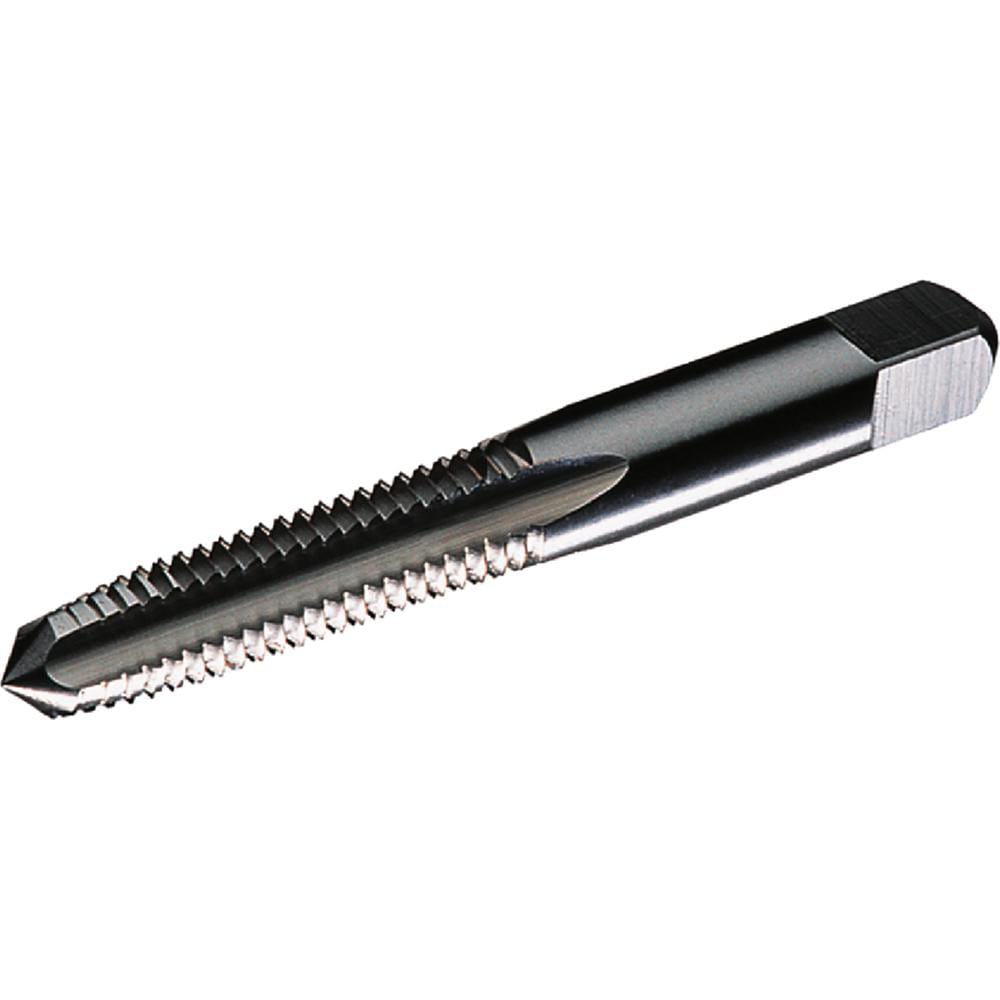

Brand: Widia / Part #: 2746572
Item #: 99792947
Brand: Widia
Model #: 2746572
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 1-8 |
| Thread Limit | H4 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.1250 |
| Thread Length (Decimal Inch) | 2.5000 |
| Thread Depth (Decimal Inch) | 2.5000 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Length (mm) | 20.64 |
| Square Size (Decimal Inch) | 0.6000 |
| Series | 5303 |
| Shank Length (Decimal Inch) | 2.6250 |
