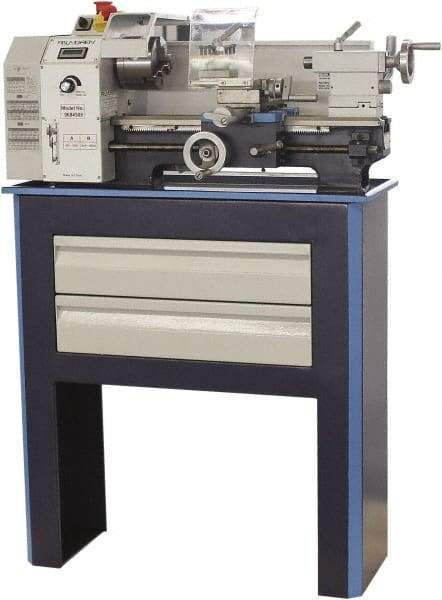

Palmgren - 8" Swing, 12" Between Centers, 115 Volt, Single Phase Bench Lathe - 3MT Taper, 1 hp, 150 to 2,500 RPM, 3/4" Bore Diam, 16-3/4" Deep x 14-1/4" High x 33" Long
Item #: 46038683
Brand: Palmgren
Model #: 9684508
Exact Tooling IR#: 04
Features and Benefits
Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly, which has an infinite speed range regulated by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Type | Bench Lathe |
| Spindle Speed Control | Variable Speed Pulley |
| Phase | 1 |
| Voltage | 115 |
| Horsepower (HP) | 1 |
| Swing (Inch) | 8 |
| Distance Between Centers (Inch) | 12 |
| Spindle Bore Diameter (Inch) | 3/4 |
| Spindle Taper Size | 3MT |
| Swing Over Cross Slide (Decimal Inch) | 3.0000 |
| Bed Width (Decimal Inch) | 3.9375 |
| Spindle Nose Designation | MT |
| Minimum Spindle Speed (RPM) | 150.00 |
| Maximum Spindle Speed (RPM) | 2500.00 |
| Number of Inch Threads | 16285 |
| Maximum Threads Per Inch | 44 |
| Minimum Metric Pitch (Decimal Inch) | 0.4000 |
| Maximum Metric Pitch (Decimal Inch) | 3.0000 |
| Number of Metric Threads | 3 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0040 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0080 |
| Minimum Threads Per Inch | 8 |
| Cross Slide Travel (Decimal Inch) | 4.0000 |
| Top Slide Travel (Decimal Inch) | 2.2500 |
| Tailstock Travel (Decimal Inch) | 2.5000 |
| Tailstock Taper Size | 2MT |
| Overall Length (Inch) | 33 |
| Overall Height (Inch) | 14-1/4 |
| Overall Depth (Inch) | 16-3/4 |
| Compound Travel (Inch) | 2-1/4 |
| Warranty | Mfr's 3 Year Warranty |
