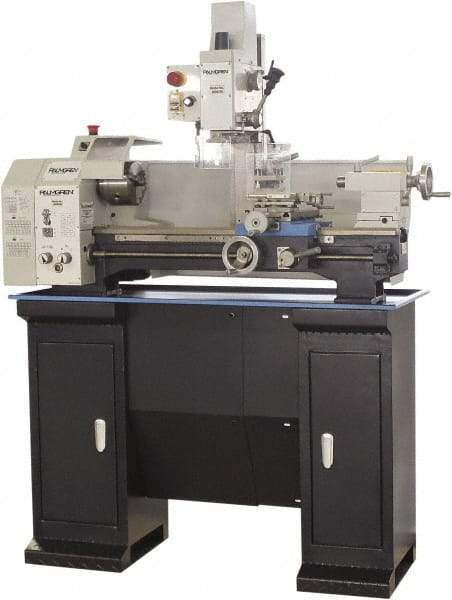

Palmgren - 9" Swing, 21-21/32" Between Centers, 115 Volt, Single Phase Bench Lathe - 3MT Taper, 1 hp, 125 to 2,000 RPM, 1" Bore Diam, 23" Deep x 33-1/2" High x 49" Long
Item #: 46038675
Brand: Palmgren
Model #: 9680213
Exact Tooling IR#: 04
Features and Benefits
Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly, which has an infinite speed range regulated by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Type | Bench Lathe |
| Spindle Speed Control | Variable Speed Pulley |
| Phase | 1 |
| Voltage | 115 |
| Horsepower (HP) | 1 |
| Swing (Inch) | 9 |
| Distance Between Centers (Inch) | 21-21/32 |
| Spindle Bore Diameter (Inch) | 1 |
| Spindle Taper Size | 3MT |
| Swing Over Cross Slide (Decimal Inch) | 5.9100 |
| Bed Width (Decimal Inch) | 5.3100 |
| Spindle Nose Designation | MT |
| Number of Spindle Speeds | 6 |
| Minimum Spindle Speed (RPM) | 125.00 |
| Maximum Spindle Speed (RPM) | 2000.00 |
| Number of Inch Threads | 20668 |
| Maximum Threads Per Inch | 56 |
| Minimum Metric Pitch (Decimal Inch) | 0.2000 |
| Maximum Metric Pitch (Decimal Inch) | 4.0000 |
| Number of Metric Threads | 4 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0030 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0160 |
| Minimum Threads Per Inch | 8 |
| Cross Slide Travel (Decimal Inch) | 3.5000 |
| Top Slide Travel (Decimal Inch) | 3.5625 |
| Tailstock Travel (Decimal Inch) | 2.5000 |
| Tailstock Taper Size | 2MT |
| Overall Length (Inch) | 49 |
| Overall Height (Inch) | 33-1/2 |
| Overall Depth (Inch) | 23 |
| Compound Travel (Inch) | 4-5/16 |
| Warranty | Mfr's 3 Year Warranty |
