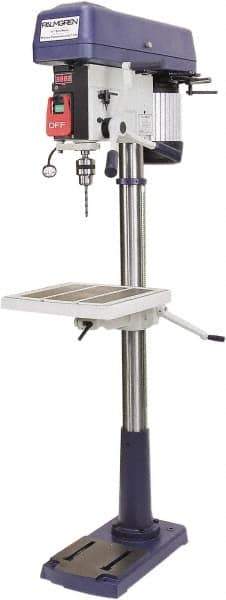

Palmgren - 17" Swing, Step Pulley Drill Press - 16 Speed, 1 hp, Three Phase
Item #: 45989290
Brand: Palmgren
Model #: 9680178
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Step pulleys are driven by a belt system that is manually changed to achieve a range of fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 17 |
| Spindle Speed Control | Step Pulley |
| Phase | 3 |
| Spindle Taper Size | 2MT |
| Spindle Travel Length (Inch) | 5 |
| Horsepower (HP) | 1 |
| Voltage | 240 |
| Minimum Spindle Speed (RPM) | 138 |
| Maximum Spindle Speed (RPM) | 3476 |
| Drilling Capacity in Steel (Inch) | 5/8 |
| Drilling Capacity in Cast Iron (Inch) | 7/8 |
| Tapping Capacity in Steel (Inch) | 5/8 |
| Tapping Capacity in Cast Iron (Inch) | 7/8 |
| Maximum Chuck Capacity (Inch) | 5/8 |
| Number of Spindle Speeds | 16 |
| Spindle to Column Distance (Inch) | 8-1/2 |
| Table Length (Decimal Inch) | 14.3750 |
| Table Width/Diameter (Decimal Inch) | 14.3750 |
| Table Load Capacity (Lb.) | 125.00 |
| Table Slot Size (Decimal Inch) | 0.6250 |
| Table Tilt (Degrees) | 45.00 |
| Base Length (Decimal Inch) | 28.0000 |
| Base Width (Decimal Inch) | 15.5000 |
| Base Depth (Decimal Inch) | 3.0000 |
| Column Diameter (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 28 |
| Overall Height (Inch) | 68 |
| Overall Depth (Inch) | 15-1/2 |
