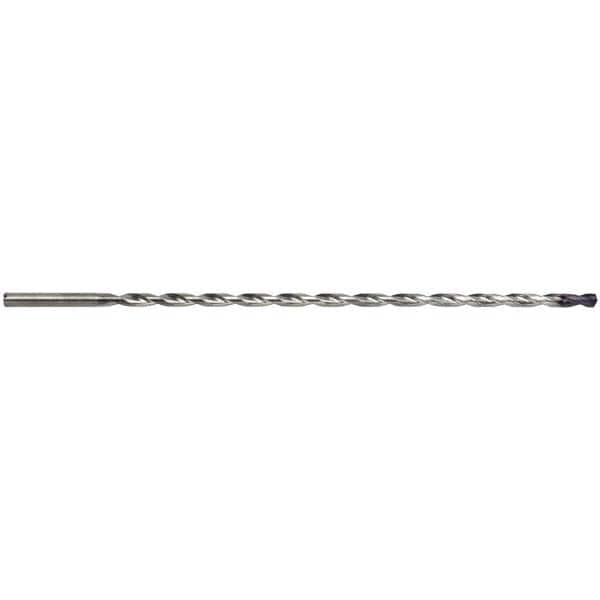

Extra Length Drill Bit: 0.2953″ Dia, 135 °, Solid Carbide TiAlN (Tip) Finish, Spiral Flute, Straight-Cylindrical Shank, Series 6513
Item #: 45931037
Brand: Guhring
Model #: 9065130075000
Product Specifications
| Drill Bit Size (mm) | 7.50 |
| Overall Length (mm) | 303.00 |
| Flute Length (mm) | 263.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN (Tip) |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6513 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.000 to -0.015 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2953 |
| Shank Diameter (mm) | 8.00 |
| Shank Length (mm) | 36.00 |
| Material Grade | Submicron |
