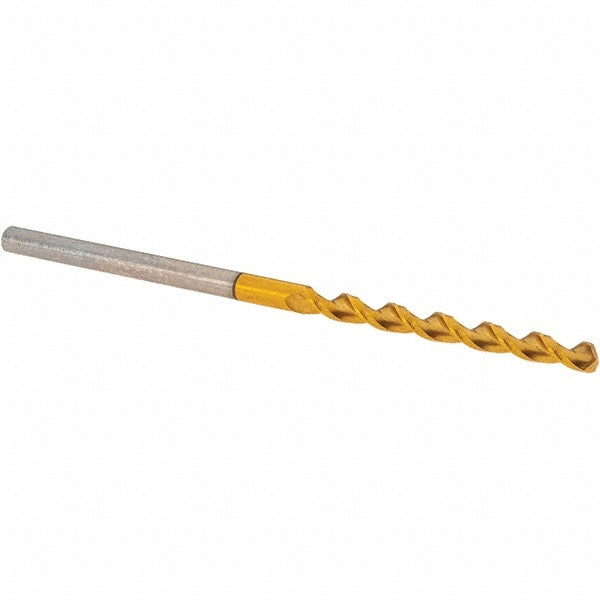

Jobber Drill: 1.90 mm Dia, 130 deg Point, High Speed Steel
Item #: 75965434
Brand: Guhring
Model #: 9006520019000
Product Specifications
| Drill Bit Size (mm) | 1.90 |
| Drill Bit Size (Decimal Inch) | 0.0748 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.0938 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Flute Length (mm) | 22.00 |
| Flute Length (Decimal Inch) | 0.8661 |
| Series | 652 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.9 |
| Maximum Drilling Depth (Decimal Inch) | 4.1875 |
| Maximum Drilling Depth (mm) | 22.00 |
| Shank Length (mm) | 24 |
| Shank Length (Decimal Inch) | 0.9449 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Material Grade | M2 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
