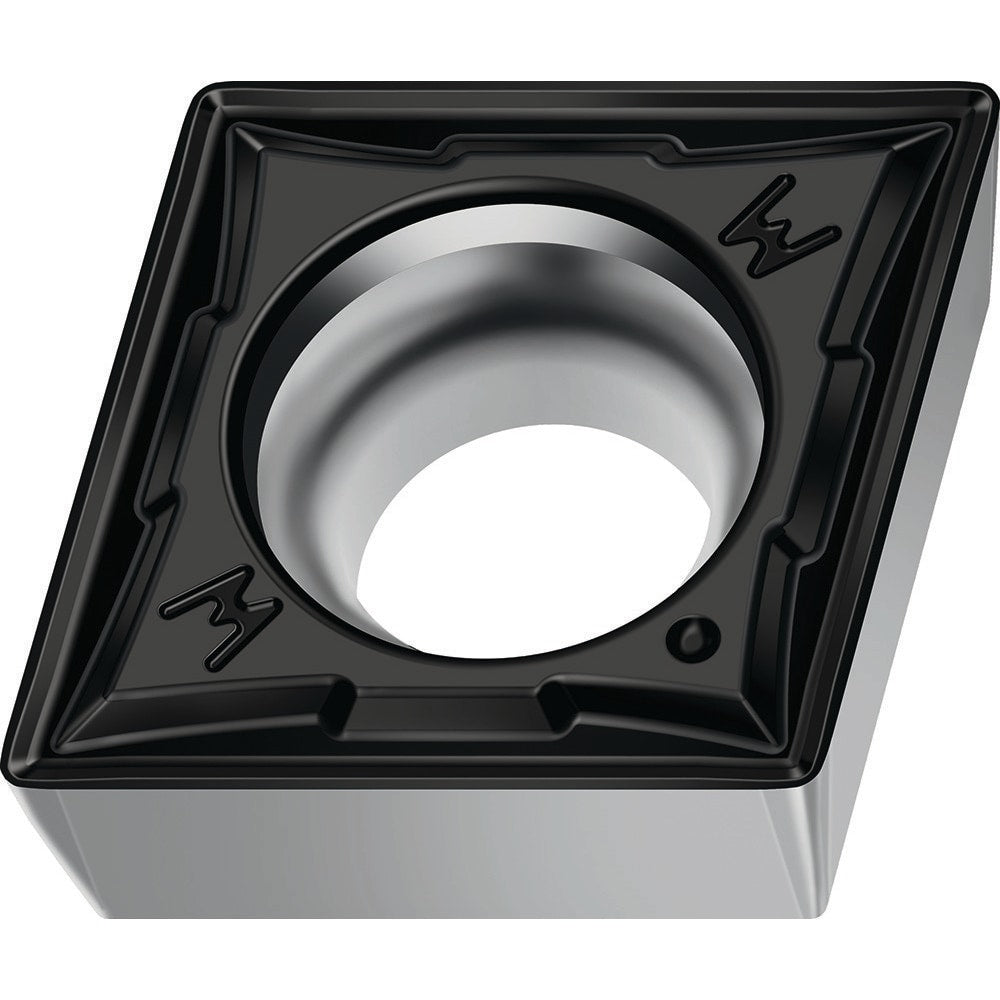

Turning Insert: CCMT431MW4 WKK20S, Carbide
Item #: 91648899
Brand: Walter
Model #: 8296299
Product Specifications
| ANSI Insert Code | CCMT431 |
| ISO Insert Code | CCMT120404 |
| Relief Angle | 7.000 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.00 |
| Manufacturer Grade | WKK20S |
| Coating/Finish | TiCN+Al2O3+(TiCN) |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | CCMT |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Wiper - Medium Machining |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.5000 |
| Maximum Depth of Cut (mm) | 4.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 12.90 |
| Manufacturers Catalog Number | CCMT120404-MW4 WKK20S |
| Chip Breaker | MW4 |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 431 |
| ISO Size Code | 120404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 12 |
| Country of Origin | Germany |
