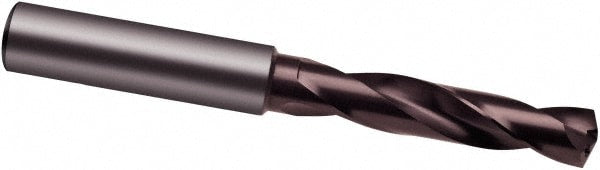

Screw Machine Length Drill Bit: 7.90 mm Dia, 140 deg Point, Solid Carbide
Item #: 53724134
Brand: Guhring
Model #: 9085100079000
Product Specifications
| Drill Bit Size (mm) | 7.90 |
| Drill Bit Size (Decimal Inch) | 0.3110 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Stainless Steel; Nickel Alloy; Titanium Alloy |
| Point Type | Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | 8510 |
| Proprietary Coating/Finish | nano-A |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 41.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 6.50 - 8.00 |
| Specification Designation | DIN |
| Material Grade | K40 |
| UNSPSC Code | 23241635 |
