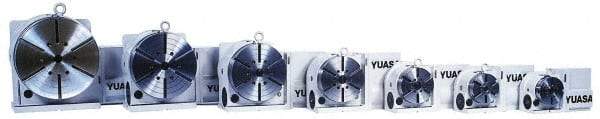

Yuasa - 1 Spindle, 75 Max RPM, 6.69" Table Diam, 0.53 hp, Horizontal & Vertical CNC Rotary Indexing Table - 80 kg (180 Lb) Max Horiz Load, 130.05mm Centerline Height
Item #: 45405727
Brand: Yuasa
Model #: DMNC-170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Rotary Table |
| Number of Spindles | 1 |
| Maximum RPM | 75 |
| Table Diameter (Decimal Inch) | 6.6900 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 180 |
| Maximum Horizontal Load Capacity (kg) | 80 |
| Maximum Vertical Load Capacity (Lb.) | 90 |
| Maximum Vertical Load Capacity (kg) | 40 |
| Sub Table Outside Diameter (mm) | 169.93 |
| Sub Table Outside Diameter (Decimal Inch) | 6.6900 |
| Centerline Height (mm) | 130.05 |
| Centerline Height (Decimal Inch) | 5.1200 |
| Through Hole Size (mm) | 44.96 |
| Through Hole Size (Decimal Inch) | 1.7700 |
| Table Torque (Ft/Lb) | 165.00 |
| Table Torque (kg-m) | 22.81 |
| Pneumatic Brake Torque (Ft/Lb) | 110 |
| Pneumatic Brake Torque (kg-m) | 15.00 |
| Hydraulic Brake Torque (Ft/Lb) | 217 |
| Hydraulic Brake Torque (kg-m) | 30 |
| Resolution (Decimal Inch) | 0.0008 |
| Positioning Accuracy (sec.) | 10.00 |
| Repeatability (sec.) | 2.00 |
| Bore Inside Diameter (mm) | 41.91 |
| Bore Inside Diameter (Decimal Inch) | 1.6500 |
| Threaded Inside Diameter | M36x3.0 |
| Gear Ratio | 60:1 |
| Spindle Runout (mm) | 0.15 |
| Spindle Runout (Decimal Inch) | 0.006000 |
| Number of T-Slots | 6 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 0.53 |
| Includes | Locating Keys; Operators' Manual; Power Supply; Remote Cable; T-Slotted Face Plate; UDNC-M1 Controller; Warranty Card |
