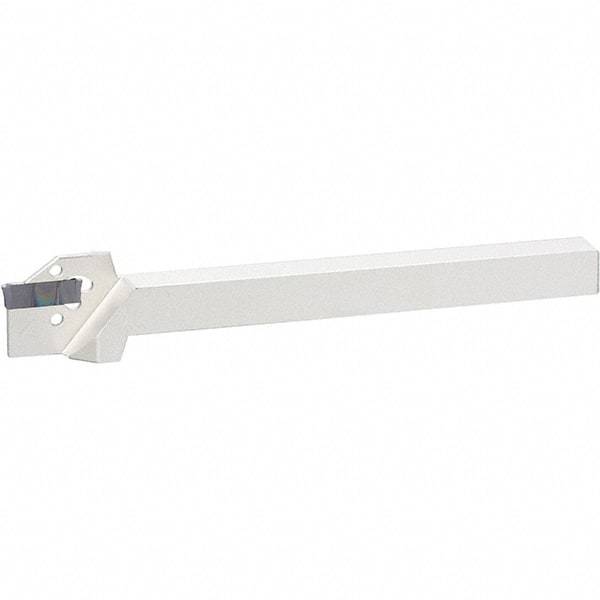

Iscar - External Thread, 0.689" Max Depth of Cut, 3mm Min Groove Width, 150mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, DG../GRIP Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 45377579
Brand: Iscar
Model #: 2301263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG..; GRIP |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | Yes |
| Head Length (mm) | 29.00 |
| Shank Length (mm) | 121.00 |
| Complete Insert Compatibility | DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-Z/ZS; GRIP (Full Radius) |
