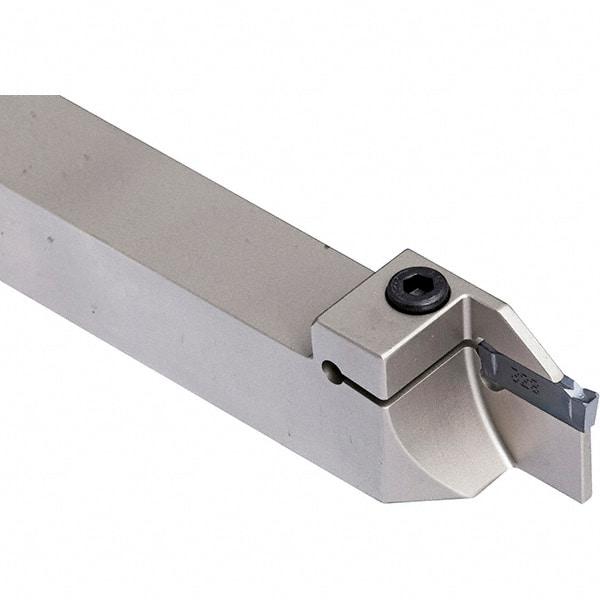

Iscar - External Thread, 0.7874" Max Depth of Cut, 3mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, C#-ASH../DG../HSK A63WH-ASH.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 45376134
Brand: Iscar
Model #: 2301965
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | C#-ASH..; DG..; HSK A63WH-ASH.. |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9500 |
| Head Length (Decimal Inch) | 1.4000 |
| Shank Length (Decimal Inch) | 4.1000 |
| Complete Insert Compatibility | C#-ASHR/L; DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-Z/ZS; HSK A63WH-ASHN-45; HSK A63WH-ASHR/L-45; HSK A63WH-ASHR/L-1 |
